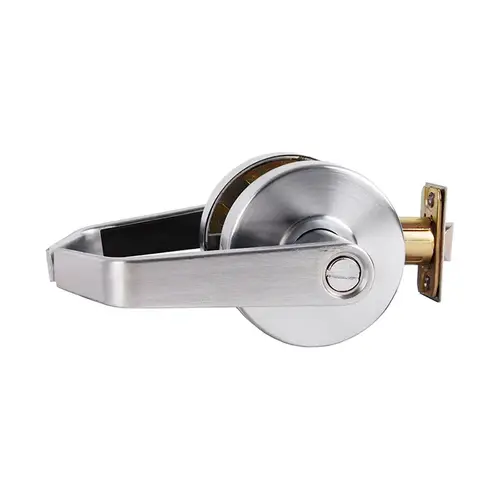

Arrow RL02SR 26D Privacy Cylindrical SR Lever and Rose Lock Satin Chrome Finish

Item #: RL02SR 26D by Arrow

See reviewsSee reviews
In Stock

$80.11

/each
SAVE UP TO 8.01

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
  • Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
  • Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
  • Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
  • Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
  • Keys – 2 brass keys Handing – Non-handed
  • Thru-bolts – Removable thru-bolts standard on RL Series
  • Packaging – 10 per case
  • Warranty – Five Year Mechanical Warranty

Grade

ANSI/BHMA Grade 2

Thickness

1-3/8" - 1-3/4"

Hand

Non-Handed

Color

Satin Chrome

Color Code

626/US26D

Function

02-Privacy

Fire Rated

3 Hours {A}

Package Height

3.75"

Package Length

7.25"

Package Volume

183.515625

Package Width

6.75"

ANSI Function

F76

Bolt Protection

1/2"

Latch Backset Dim

2-3/4"

Latch Number

R73

Latch Type

Spring Latch

Lever/Knob Design

SR - Sierra

Lock Face Size

2-1/4" x 1-1/8"

Package Qty

1

Product Height

3.3125"

Product Length

4.75"

Product Width

2.4375"

Rose/Escutcheon Design

3-5/16 In. Diameter

Screws

Combination

Special Marks

Fire rated 3 Hours {A}

Strike Height

4-7/8"

Strike Number

R62

Strike Type

T-Strike

Strike Width

1-1/4"

Base Material

Brass or Bronze

Finish

Satin Chrome

Finish Description

Satin Chrome

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Lever Style

SR-Sierra

Product Type

Cylindrical Lock

Rose/Escutcheon Trim

Round Rose

Backset

2-3/4 Inch

Series

RL Series

Projection

2.4375

Lever Length

4.7500

Door Thickness

1-3/8" to 1-3/4"

Bore Size

2.1250

ADA Approved

False

Application

Multi Family Housing Markets; Light Commercial

Warranty

5 Year Mechanical

Handle Type

Lever

Rose Diameter

3-5/16 Inch

Latch Throw

1/2 Inch

ADA Compliant

YES

Finish Family

Satin Chrome

Door Cross Bore

2.125 Inch

Standards

ANSI A156.2; UL Listed

Function Description

Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.

Front Size

1" x 2-1/4"

Function Family

Privacy/Bedroom/Bathroom

Latch bolt size

7/8 Inch

Strike Lip

1-1/4 Inch

Product Projection

2-7/16 Inch

Trim Material

Brass (Rose); Pressure Cast Zinc (Lever)

Features

Removable Through Bolts; Guarded Latchbolt on All Locking Functions

Manufacturer Parent

Assa Abloy

Lever Length-Inches

4.75 Inch

Latch Corner

Square

Latchbolt Size

7/8 Inch

Knob/Lever Size

4-3/4 Inch

Latch Bolt Material

Brass

Lever Style Family

Straight Return Lever

Sub-Series

RL02-SR-26D

Strike Size

1-1/4" x 4-7/8"
