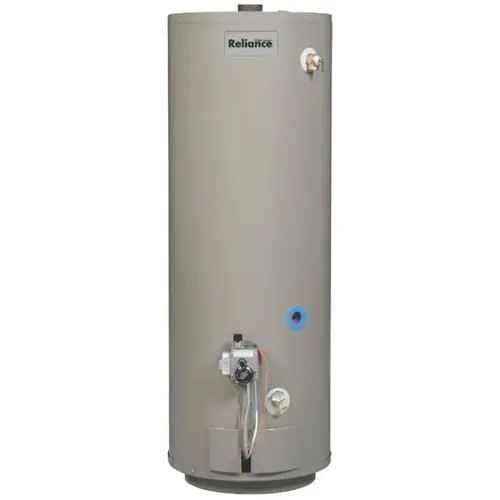

Reliance 6-40-MDV 250 Gas Water Heater, Natural Gas, Propane, 40 gal Tank, 57 gph, 35000 Btu BTU, 0.59 Energy Efficiency
Item #: 6-40-MDV 250 by RELIANCE WATER HEATER CO.
UPC #: 091193004043
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 40 Gallon Mobile Home Sealed-Combustion Water Heater
- Eco-Friendly Green Choice® gas burner reduces NOx emissions by 33% over standard burners
- All Air From Combustion and Venting must be from Outside Atmosphere
- Piezo igniter allows for easy one-hand pilot ignition without matches
- 32,000 BTU's
- PEX dip tube
- Glass lined tank with anode rod protects against corrosion
- Convertable Control for Natural Gas or LP Gas
- HUD APPROVED FOR MANUFACTURED (MOBILE HOME) USE
- Environmentally friendly Non-CFC foam insulation
- Factory installed PEX polymer lined heat trap nipples
- Factory installed temperature and pressure relief valve
- Side taps for easy installation
- Convertible gas control for natural or propane gas operation
Power Source
Natural Gas/Propane
Energy Star Certified
No
Returnable
Yes
Gas Connection Size
1/2"
Minimum Temperature
55 °F
Height
64.19
Defective Code
A
Vent Diameter
3"
Commercial or Residential
Residential
Water Connection Location
Side
Low NOx Burner
Yes
BTUs
32000 BTU
Width
20.69
Temperature Pressure Relief Valve
Yes
Maximum Temperature
155 °F
Maximum Elevation
5400 ft.
Volts
0 V
Maximum Pressure
150 psi
Water Connection Size
3/4"
Depth
20"
Diameter
20"
Product Type
Mobile Home Water Heater
Tankless
No
Tank Capacity
40 gal
AMPS
0 amps
Warranty
6 Year Limited
CSA Listed
Yes
Each Weight
135.000 LB
Velocity
X
Hazardous Material
No
Household Size
5 or More People
Product Weight (lb.)
126
First Hour of Delivery (gph)
57
Labor Warranty
1 Year
Minimum Temperature (F)
155
Nominal Tank Capacity (gal.)
40
Part Warranty
Yes
Recovery Rate at 90F Rise (gph)
33
Tank Lining Material
Glass Over Steel
Tank Warranty
Yes
Uniform Energy Factor (UEF)
0.59
Water Heater Fuel Type
Natural Gas
Water Heater Vent Type
Standard Atmospheric Vent
Water Heaters Product Type
Water Heater
Country Origin Code
US
Brand
Reliance
Commercial/Residential
Residential
Finish Family
Gray
Gas Type
Natural Gas Propane
Maximum Temperature (F)
91
Product Height (in.)
58.75
Product Length (in.)
58.75
Product Width (in.)
20
Rated Tank Capacity (gallons)
38
Indoor or Outdoor
Indoor
BTU Rating
35000 Btu
Length
26.19
Dimensions
20 in W x 61 in H
Application
For Residential Applications
Outlet Connection Size
1/2"
Energy Efficiency
0.59
Nomenclature
6 40 MDV/250 WTR HTR NG/LP 40G
Inlet Connection Size
3/4"
Product Overview
HEATER WTR MBHM NG/LP 6YR 40G
Convertible gas control for natural or propane gas operation. Glass-lined tanks with anode rod protects against corrosion. Eco-friendly Green Choice gas burner reduces NOx emissions by 33% over standard burners. Factory installed Temperature and Pressure Relief Valve. 6 years tank and part limited warranty.
