Odp Threaded Pool Filter Motor 1hp 115/230v Satin Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

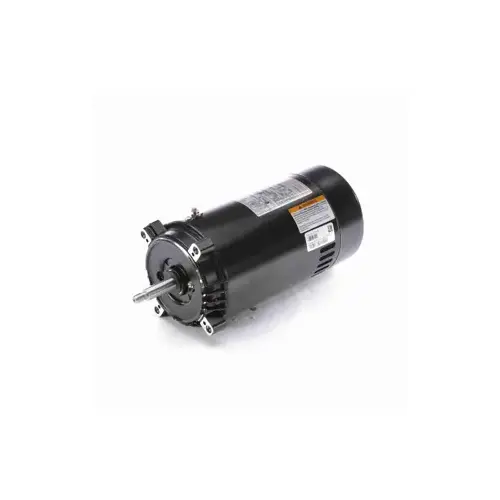

REGAL BELOIT UST1102Click To Copy Odp Threaded Pool Filter Motor 1hp 115/230v Satin Black

Item #: UST1102 by Regal Beloit America Inc

UPC #: 786674033338

See reviewsSee reviews
See reviews summary
In Stock

$329.32

/each
SAVE UP TO 32.93

Buying in bulk


QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Sealed switch design
  • Low service factor
  • 7/16-20 UNF-2A RH threaded shaft

Diameter

6-1/2 Inch

RPM

3450

Frame

56J

Type

Up-Rated, UAC

Shipping Dimensions

18.00x9.25x9.25

OverallLength

11.00 Inch

Brand

Regal Beloit

Phase

1-Phase

Department

PUMPS

Bearing Type

Sealed Ball

AmbientTemperature

50 deg C

FinishColor

Satin Black

FrequencyRating

60 Hz

FullLoadAmps

15/7.5 A

HP

1

Item

Two-Compartment Pool Filter Motor

MountingType

C-Face

StandardsApprovals

UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)

SubBrand

Century®

VoltageRating

115/230 V

EnclosureDesign

Open Dripproof

FlangeMaterial

Aluminum

ThrustHorsepower

1.1

ShaftDesign

Threaded

InsulationClass

B

ShaftLength

2-9/16 Inch

ShaftMaterial

303 Stainless Steel

ShaftDiameter

5/8 Inch

DutyCycle

Continuous

MotorThermalProtection

Auto

EfficiencyGroup

Standard

NumberofSpeed

1-Speed

MotorDesign

Capacitor Start

ServiceFactor

1.10

MotorShaftRotation

CCWPE

Voltage

115V,230V

Shaft Diameter

0.625 inch

Application

Pool

Horsepower

1 horse power

Color

Black

Shaft Length

2.5625 inch

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Motor Speed

1-Speed

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

B

Flange Material

Aluminum

Service Factor

1.1

Motor Rating

Up-Rated

Commercial, Residential, or Professional

Residential

Motor Frame Size

56J

Master Carton Quantity

1

Each Product Weight

21 pound

RPMs Min

3450

Motor Capacitor Type

Start

Shaft Design

Threaded

RPMs Max

3450

Amps Low Speed

7.5

Minimum Sell Quantity

1

Efficiency Group

Standard

Frequency Rating (Hz)

60

Motor Shaft Rotation

Counterclockwise Pulley End

Amps High Speed

15

Standards Approvals

CSA Certified

Motor Thermal Protection

Automatic Reset

Product Overview

Century(R) UST1102 Up-Rated Two-Compartment Pool Filter Motor; 1 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
