1.5hp 115/230v Ur 48y Odp Sqfl Motor Satin Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

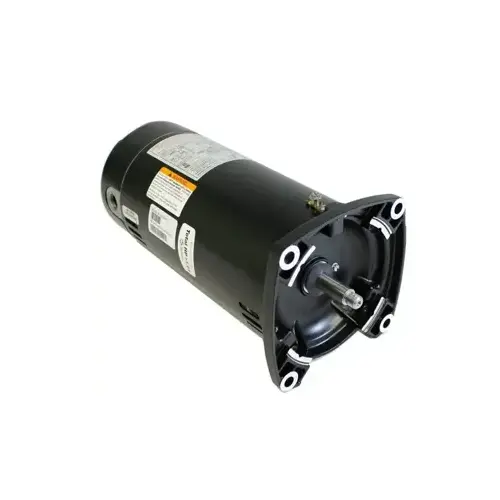

REGAL BELOIT USQ1152 1.5hp 115/230v Ur 48y Odp Sqfl Motor Satin Black

Item #: USQ1152 by Regal Beloit America Inc

UPC #: 786674033253

See reviews See reviews
In Stock

$381.12

/each
SAVE UP TO 38.11

Buying in bulk


QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Low service factor
  • 1/2-20 UNF-2A RH threaded shaft

MotorShaftRotation

CCWPE

ServiceFactor

1.10

FlangeType

Square

MotorDesign

Capacitor Start

NumberofSpeed

1-Speed

EfficiencyGroup

Standard

MotorThermalProtection

Auto

DutyCycle

Continuous

ShaftDiameter

5/8 Inch

ShaftMaterial

303 Stainless Steel

InsulationClass

B

ShaftDesign

Threaded

ThrustHorsepower

1.65

EnclosureDesign

Open Dripproof

VoltageRating

115/230 V

SubBrand

Century®

StandardsApprovals

UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341)

MountingType

C-Face

Item

Two-Compartment Pool Filter Motor

HP

1.5

FullLoadAmps

19.2/9.6 A

FrequencyRating

60 Hz

FinishColor

Satin Black

AmbientTemperature

50 deg C

Bearing Type

Sealed Ball

Department

PUMPS

Phase

1-Phase

Brand

Regal Beloit

OverallLength

13.13 Inch

Shipping Dimensions

21.75x9.75x9.00

Type

Up-Rated, UAC

Application

Many Sta-Rite®, Red Jacket, Pac Fab and American Products

Frame

48Y

RPM

3450

Diameter

5-5/8 Inch

Voltage

115V,230V

Shaft Diameter

0.625 inch

Horsepower

1.5 horse power

Color

Black

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Flange Type

Square

Motor Speed

1-Speed

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

B

Service Factor

1.1

Commercial, Residential, or Professional

Residential

Motor Frame Size

48Y

Master Carton Quantity

1

Each Product Weight

25 pound

RPMs Min

3450

Motor Capacitor Type

Start

Shaft Design

1/2 Threaded

RPMs Max

3450

Selling Package Depth

9

Amps Low Speed

8.75

Minimum Sell Quantity

1

Efficiency Group

Standard

Frequency Rating (Hz)

60

Motor Shaft Rotation

Counterclockwise Pulley End

Amps High Speed

17.5

Standards Approvals

CSA Certified

Motor Thermal Protection

Automatic Reset


Century(R) USQ1152 Square Flange Up-Rated Two-Compartment Pool Filter Motor; 1.5 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
