.5hp 208-230/460v 3ph 56j Odp Threaded Motor

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

REGAL BELOIT H282 .5hp 208-230/460v 3ph 56j Odp Threaded Motor

Item #: H282 by Regal Beloit America Inc

UPC #: 786674023179

See reviewsSee reviews

$445.98

/each
SAVE UP TO 44.60

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • High service factor
  • Reversible
  • Squirrel Cage
  • Cast iron NEMA "C" bracket

Diameter

6-1/2 Inch

RPM

3450/2850

Frame

56J

Type

Full-Rated, SC

Shipping Dimensions

16.75x9.50x9.50

OverallLength

12.05 Inch

Brand

Regal Beloit

Phase

3-Phase

Department

PUMPS

Bearing Type

Ball

AmbientTemperature

40 deg C

FrequencyRating

50/60 Hz

FullLoadAmps

2.1-2.4/1.2 A

HP

0.5

Item

Swimming Pool Pump Motor

StandardsApprovals

UL 1081 Approved, CSA Certified

SubBrand

Century®

VoltageRating

208-230/460 V

EnclosureDesign

Open Dripproof

ThrustHorsepower

0.8

ShaftDesign

Threaded

InsulationClass

A

ShaftMaterial

303 Stainless Steel

ShaftDiameter

5/8 Inch

DutyCycle

Continuous

MotorThermalProtection

None

ServiceFactor

1.60

MotorShaftRotation

CW/CCW

Voltage

208V,230V

Shaft Diameter

0.625 inch

Horsepower

0.5 horse power

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Flange Type

Round

Shaft Material

303 Stainless Steel

Ambient temperature

40 degrees Celsius

Insulation Class

A

Service Factor

1.6

Motor Rating

Full-Rated

Motor Frame Size

56J

Master Carton Quantity

1

Each Product Weight

22 pound

RPMs Min

2850

Shaft Design

7/16 Threaded

RPMs Max

3450

Amps Low Speed

1

Minimum Sell Quantity

1

Frequency Rating (Hz)

50/60

Motor Shaft Rotation

Counterclockwise,Reversible

Amps High Speed

2

Standards Approvals

CSA Certified

Motor Thermal Protection

None

Product Overview

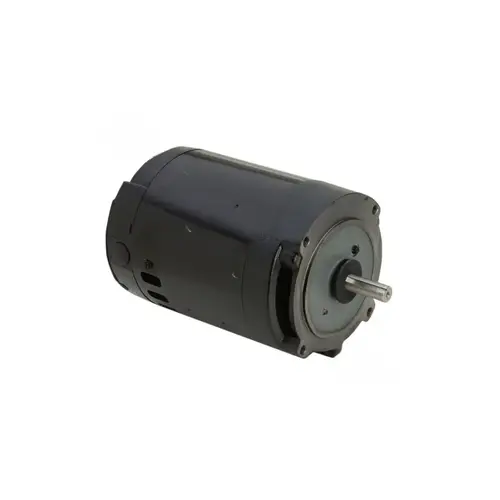

Century(R) H282 3-Phase Full-Rated Swimming Pool Pump Motor; 0.5 HP, 3450/2850 RPM, 208-230/460 V, 56J, Threaded Shaft
