30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
VoltageRating
115/230 V
DutyCycle
Continuous
MotorDesign
PSC
Frame
56J
FullLoadAmps
9.2/18.4 A
ServiceFactor
1.30
Brand
Regal Beloit
SubBrand
Century®
StandardsApprovals
UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
AmbientTemperature
50 deg C
RPM
3450
ShaftDesign
Threaded
MotorShaftRotation
CCWPE
Phase
1-Phase
FlangeMaterial
Aluminum
Department
PUMPS
ShaftMaterial
303 Stainless Steel
MountingType
C-Face, No Base
InsulationClass
B
EfficiencyGroup
Standard
ThrustHorsepower
1.95
HP
1.5
Type
Full-Rated, CX
ShaftDiameter
5/8 Inch
FinishColor
Black
FrequencyRating
60 Hz
NumberofSpeed
1-Speed
OverallLength
13.50 Inch
Diameter
6-1/2 Inch

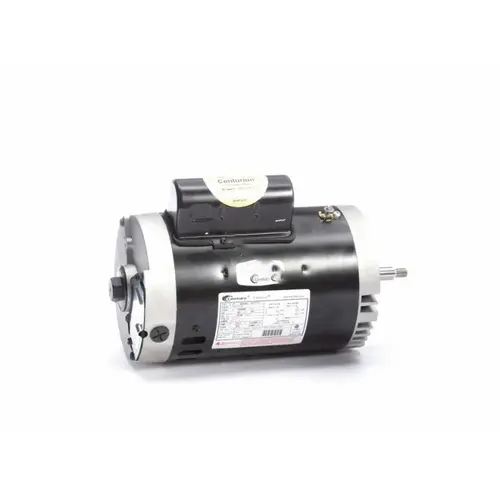

Item
Pool and Spa Pump Motor
ShaftLength
2-9/16 Inch
MotorThermalProtection
Auto
Bearing Type
Ball
EnclosureDesign
Open Dripproof
Shipping Dimensions
17.75x10.75x9.50
Voltage
115V,230V
Shaft Diameter
0.625 inch
Application
Above Ground,Pool,Spa
Horsepower
1.5 horse power
Color
Black
Shaft Length
2.5625 inch
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Flange Type
Round
Motor Speed
1-Speed
Shaft Material
303 Stainless Steel
Ambient temperature
50 degrees Celsius
Insulation Class
B
Flange Material
Aluminum
Service Factor
1.3
Motor Rating
Full-Rated
Motor Frame Size
56J
Master Carton Quantity
1
Each Product Weight
32 pound
RPMs Min
3450
Shaft Design
7/16 Threaded
RPMs Max
3450
Selling Package Depth
9.5
Amps Low Speed
9.2
Minimum Sell Quantity
1
Efficiency Group
Standard
Frequency Rating (Hz)
60
Motor Shaft Rotation
Counterclockwise Pulley End
Amps High Speed
18.4
Standards Approvals
CSA Certified
Motor Thermal Protection
Automatic Reset
