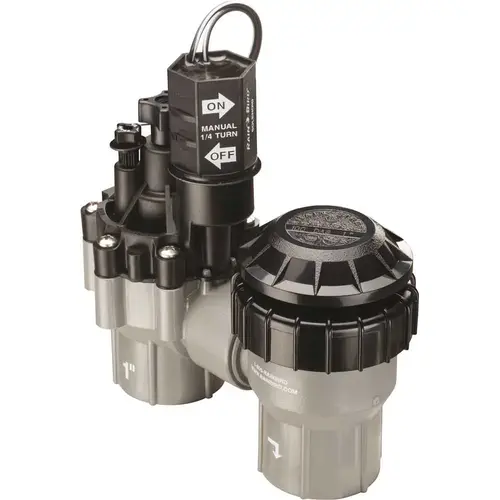

RAIN BIRD DASASVF100 Anti-Siphon Valve, 1 in, FNPT, 15 to 150 psi Pressure, 0.2 to 40 gpm, 24 V, Plastic Body
Item #: DASASVF100 by Rain Bird
UPC #: 077985607104
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Combination Electric Remote Control Valve and Atmospheric Backflow Preventer in one unit
- Flow control allows adjusting flow to the zone, optimizing sprinkler performance
- Energy-efficient, low-power encapsulated solenoid with captured plunger.
- Buna-N diaphragm offers great performance in harsh water environments
- External bleed to manually flush system of dirt and debris prior to installation and system start-up
- Spray-free internal bleed for manual operation
- Canadian Standards Association approved
- Energy efficient, low power encapsulated solenoid with captured plunger for long lasting dependability
- External bleed to manually flush system of dirt and debris during installation and system start up.
- Heavy-duty construction with stainless steel screws
- Buna-N diaphragm with water filter and captive spring
- Meets I.A.P.M.O. and A.S.S.E. listing specifications
Inlet Size (in.)
1
Connection
Female Pipe Thread
Product Width (in.)
3
Number of Outlets
1
Thread Type
Pipe Thread
Maximum Pressure
150
Product Height (in.)
6
Material
Plastic
Pack Size
1
Product Length (in.)
6.75
Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
Irrigation System Component
Valve
Manufacturer Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
UNSPSC
21102500
Height
6.87
Width
6.75
Country Origin Code
MX
Length
3.31
Hazardous Material
No
Dimensions
6-3/4 in L x 3 in W x 6 in H
Nominal Size
1"
Pressure rating
15 to 150 psi
Temperature Rating
40 to 125 deg F
Nomenclature
DASASVF100 ANTISPHN VALVE 1"
Connection Type
FNPT
ECCN
EAR99
Voltage
24 V
Inlet Size
1"
Adjustable Flow Control
Yes
Defective Code
A
Each Weight
1.700 LB
Returnable
Yes
Velocity
D
Product Type
Anti-Siphon Valve
Product Overview
VALVE DLX ELECT ANTISIPHON 1IN
This professional-grade anti-siphon valve replaces Rain Bird and other irrigation valves installed above ground with 1 in female threaded inlet and outlet. It can be used with any 24 VAC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. Anti-siphon valves should always be installed at least 6 in above the highest head on the valve line and should never have another valve installed further down the line from the main valve. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw. Equipped with the additional advantage of adjustable flow control, this model helps prevent wasteful misting when water pressure is too high. A top mounted, easy turn flow control knob allows you to optimize flow to the zone, permitting sprinklers to water at their most efficient rate for more uniform coverage.
