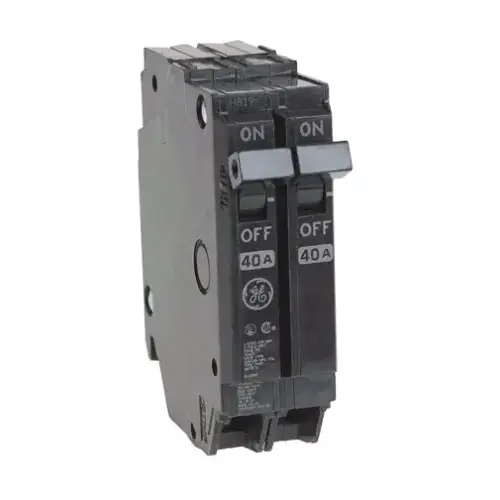

General Electric THQP240 Feeder Circuit Breaker, Type THQP, 40 A, 2 -Pole, 120/240 V, Plug Mounting Black

Item #: THQP240 by General Electric Company

UPC #: 783164085754

See reviews See reviews
In Stock

$25.00

/each
SAVE UP TO 2.50

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
  • Calibration screw is cemented to prevent shifting
  • Case made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position

Voltage

240

Mounting Type

Plug

Warranty

1 year warranty from first use

Certifications

UL

Amperage

40 Amp

Phase

1

Manufacturer Warranty

1 year from first use

Breaker Type

Double Pole

Certifications and Listings

ANSI Certified, UL Listed

Circuit Breaker Type

Thin

Maximum Amperage

40

Number of Poles

2

Product Depth (in.)

1

Product Height (in.)

3

Product Width (in.)

3.375

Pack Size

1

Height

1.00

AMPS

40 amps

Volts

120/240 V

Depth

2.4"

Width

2.80

UL Listed

Yes

Packaging Type

Bulk

Indoor or Outdoor

Indoor

Breakers Included

Yes

Circuit Protection Type

Standard

CSA Listed

Yes

Defective Code

A

Each Weight

0.370 LB

Hazardous Material

No

Returnable

Yes

Sub Brand

Q-Line

Velocity

B

Product Type

Circuit Breaker

UNSPSC

39121601

Length

3.30

ECCN

EAR99

Country Origin Code

TW

Dimensions

3.28 in L x 1 in W x 2.58 in H

Type

Type THQP

Operating Temperature

60 to 75 deg C

Wire Size

8 to 4 AWG

Number of Phases

1

Terminal Type

Lug

Interrupt Rating

10 kA

Operating Frequency

50/60 Hz

Trip Type

Non-Interchangeable

Nomenclature

THQP240 GE BREAKR1/2IN 40A 2P

Actuator Type

Toggle

Current Rating

40 A

BREAKER CIRCUIT 2POLE 1IN 40A
Specifications:

Suitable for: Reverse Feed

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
