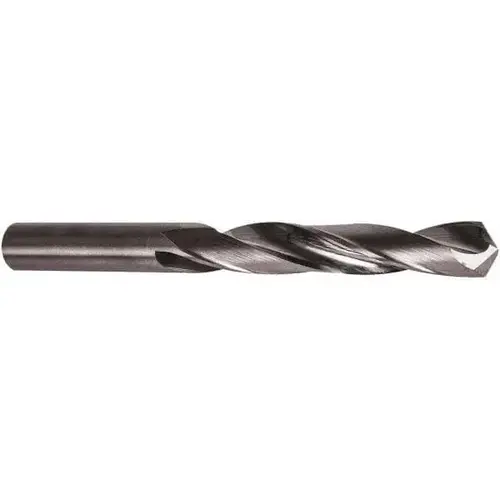

Jobber Length Drill Bit: Letter F (0.2570) Dia, 118 deg, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Precision Twist Drill 6002747Click To Copy Jobber Length Drill Bit: Letter F (0.2570) Dia, 118 deg, Solid Carbide Bright/Uncoated

Item #: 6002747 by Precision Twist Drill

See reviewsSee reviews
See reviews summary
In Stock

$73.75

/each
SAVE UP TO 7.38

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Straight

Overall Length (mm)

82.55

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

D33F-D33W-D33L-D33M

Point Type

Standard

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

Bright/Uncoated

Coolant Through

No

Double Margin

No

Drill Bit Grade

General Purpose

Drill Bit Size (Decimal Inch)

0.2570

Drill Bit Size Range (Decimal Inch)

0.2500 - 0.3000

Drill Point Angle (Degrees)

118

Flute By Diameter Ratio

8xD

Flute Length (Decimal Inch)

2.0000

Flute Length (Inch)

2

Flute Length (mm)

50.80

Maximum Drilling Depth (Decimal Inch)

2.0000

Maximum Drilling Depth (Inch)

2

Number of Flats

0

Overall Length (Decimal Inch)

3.2500

Overall Length (Inch)

3-1/4

Primary Workpiece Material

Aluminum & Non-Ferrous

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.2571

Shank Length (Decimal Inch)

1.2500

Shank Length (Inch)

1-1/4

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Size (Letter)

F

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: Letter F (0.2570) Dia, 118 deg, Solid Carbide Bright/Uncoated Finish, 3.2500" OAL, Right Hand Cut, Regular Spiral Flute, Straight Shank, Series D33F-D33W-D33L-D33M
