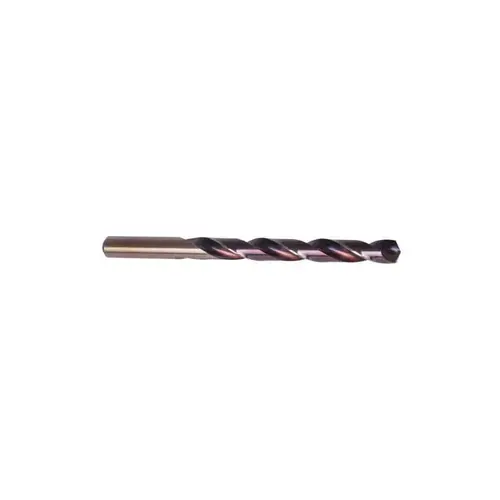

Precision Twist Drill 5996370Click To Copy Jobber Drill: Letter O, 135 deg Point, High Speed Steel
Item #: 5996370 by Precision Twist Drill
See reviewsSee reviews
In Stock
$12.62
/eachSAVE UP TO 1.26
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 29 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Regular Spiral
Shank Type
Straight
Overall Length (mm)
114.30
Number of Flutes
2
Standards
ANSI
Cutting Direction
Right Hand
Series
HX10-HX15-HX18
Point Type
Standard
Drill Bit Material
HSS
Spiral Type
Regular
Tool Application
Drilling
Coating/Finish
Straw
Coolant Through
No
Double Margin
No
Drill Bit Grade
Heavy Duty
Drill Bit Size (Decimal Inch)
0.3160
Drill Bit Size Range (Decimal Inch)
0.3000 - 0.3500
Drill Point Angle (Degrees)
135
Flute By Diameter Ratio
10xD
Flute Length (Decimal Inch)
3.1875
Flute Length (Inch)
3-3/16
Flute Length (mm)
80.96
Material Grade
M2
Maximum Drilling Depth (Decimal Inch)
3.1875
Maximum Drilling Depth (Inch)
3-3/16
Number of Flats
0
Overall Length (Decimal Inch)
4.5000
Overall Length (Inch)
4-1/2
Primary Workpiece Material
High-Temp Alloy
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.3160
Shank Length (Decimal Inch)
1.3125
Shank Length (Inch)
1-5/16
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Size (Letter)
O
Specification Designation
ANSI
Web Configuration
Tapered
Web Thinning
Web-Thinned
Product Overview
Jobber Drill: Letter O, 135 deg Point, High Speed Steel Bronze Coated, 4-1/2" OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series HX10-HX15-HX18
