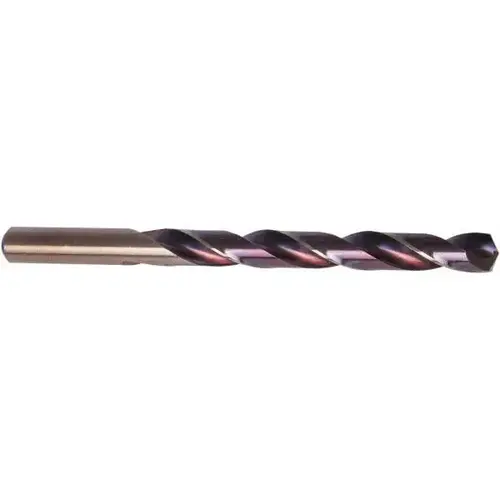

Precision Twist Drill 5995825-XCP12Click To Copy Jobber Length Drill Bit: #3, 135 degree, High Speed Steel - pack of 12
Item #: 5995825-XCP12 by Precision Twist Drill
See reviewsSee reviews
In Stock
$82.62
/packageSAVE UP TO 8.26
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Number of Flutes
2
Standards
ANSI
Cutting Direction
Right Hand
Series
HX10-HX15-HX18
Point Type
Standard
Drill Bit Material
High Speed Steel
Spiral Type
Regular
Tool Application
Drilling
Coating/Finish
Bronze
Coolant Through
No
Double Margin
No
Drill Bit Size (Decimal Inch)
0.2130
Drill Bit Size (Wire)
#3
Drill Bit Size Range (Decimal Inch)
0.2000 - 0.2500
Drill Point Angle (Degrees)
135
Flute By Diameter Ratio
12xD
Flute Length (Decimal Inch)
2.5000
Flute Length (Inch)
2-1/2
Material Grade
M2
Maximum Drilling Depth (Decimal Inch)
2.5000
Maximum Drilling Depth (Inch)
2-1/2
Number of Flats
0
Overall Length (Decimal Inch)
3.7500in
Overall Length (Inch)
3-3/4in
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.2130
Shank Length (Decimal Inch)
1.2500in
Shank Length (Inch)
1-1/4in
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Specification Designation
ANSI
Web Configuration
Tapered
Web Thinning
Web-Thinned
Product Overview
Jobber Length Drill Bit: #3, 135 degree, High Speed Steel Purple/Bronze Coated, 3-3/4" OAL, Right Hand Cut, Straight-Cylindrical Shank, Series HX18
