CRL One-Piece Surface Mount Clamps are designed for easy surface mount installation around pool decks and patios. Glass fabrication requires two 5/8" (16 mm) holes per Clamp. Height: 7-1/16" (179 mm).
CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.
NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

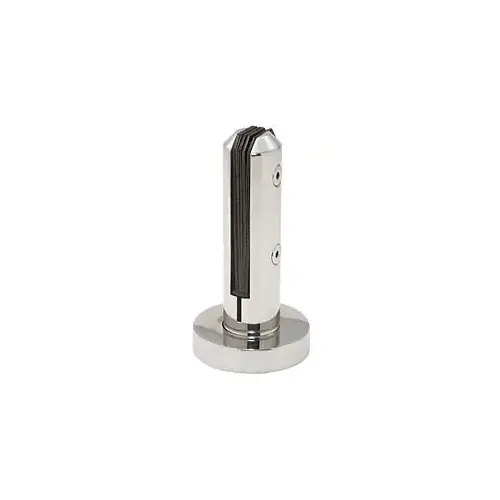

CRL AFWC4SPSClick To Copy Polished Stainless Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp
Item #: AFWC4SPS by CR Laurence
See reviewsSee reviews
In Stock
$290.06
/eachSAVE UP TO 29.01
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Designed for 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass
- Easy to Install Surface Mount Design
- For 12 mm (1/2") Tempered Glass
Over Height
7-1/16 in (179.4 mm)
Overall Height
7-1/16" (179 mm)
Type
Round One-Piece Surface Mount
Finish
Polished Stainless
Material
Stainless Steel
Glazing Thickness
3/8, 1/2, 9/16
Attachment
Surface
Finish/Color
Polished Stainless Steel
Base Plate Diameter (Inches)
3-1/2
Mounting Hole Diameter (Inch)
9/32
Diameter
1 7/8
Mounting Hole Diameter
9/32 in. (7 mm)
Base Plate Diameter
3-1/2 in. (89 mm)
Product Overview
CRL One-Piece Surface Mount Clamps are designed for easy surface mount installation around pool decks and patios. Glass fabrication requires two 5/8" (16 mm) holes per Clamp. Height: 7-1/16" (179 mm).
CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.
NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
