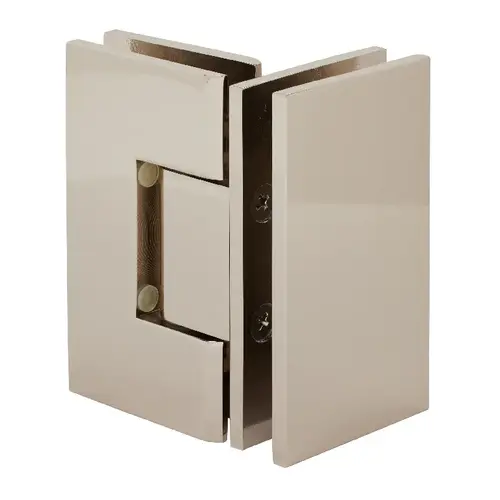

CRL V1E092PN Polished Nickel Vienna 092 Series 90 Degree Glass-to-Glass Hinge
Item #: V1E092PN by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- 90 Degree Glass-to-Glass
- Use Monolithic Tempered Glass
Shipping Weight
2 lb (907g)
Width
2-1/4" (57 mm)
Height
3-15/16
Finish
Polished Nickel
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
3/8, 1/2
Maximum Door Width
36
Edge Profile
Square
Finish/Color
Polished Nickel
Series
Vienna
Width - Sidelite Portion (Inches)
2-1/4
Self-Centering
Yes
Maximum Door Weight - 3 Hinges (Pounds)
140
Maximum Door Weight - 2 Hinges (Pounds)
110
Width - Door Portion (Inches)
2-1/4
Glass To Glass Angle (Degrees)
90
Mounting Style
Glass To Glass
Height (Inches)
3-15/16
Max Dr Weight - 3 Hinges (Lbs)
140
Width - Sidelite Portion (Inch
2-1/4
Max Dr Weight - 2 Hinges (Lbs)
110
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Width - Sidelite Portion
2-1/4
Width - Door Portion
2-1/4 in. (57 mm)
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Opening Style
Swing(side)
Enclosure Type
Corner, Tailor Made Solutions
Design Style
Squared
