Advantages of CRL Senior and Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System. The Junior Prima Series is adaptable to our Junior Header Kit.
SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

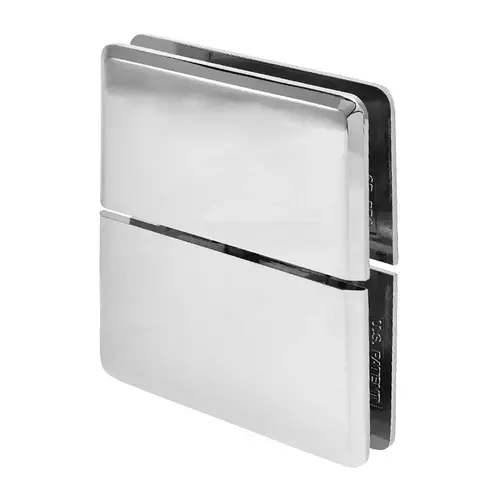

CRL SRPPH02CH Polished Chrome Senior Prima 02 Series Glass-to-Glass Mount Hinge
Item #: SRPPH02CH by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Glass-to-Fixed Transom Mount
- For Use with 1/2" (12 mm) Glass
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
Finish
Polished Chrome
Mounting Type
Glass To Transom
Material
Brass
Width
4-3/4
Glazing Thickness
1/2
Maximum Door Width
36
Edge Profile
Beveled
Finish/Color
Polished Chrome
Series
Senior Prima
Self-Centering
Yes
Maximum Door Weight - 2 Hinges (Pounds)
145
Height
5-3/8
Maximum Door Weight
145
Height - Door Portion (Inches)
2-5/8
Height - Transom Portion (Inches)
2-5/8
Height - Door Portion
2-5/8 in. (67 mm)
Height - Transom Portion
2-5/8
Product Overview
Advantages of CRL Senior and Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System. The Junior Prima Series is adaptable to our Junior Header Kit.
SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
