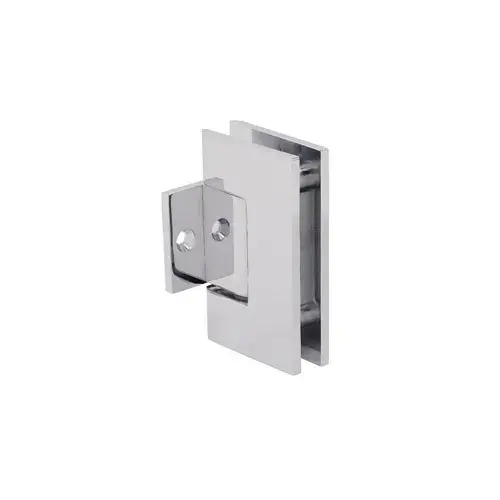

CRL GEN280CH Polished Chrome Geneva 280 Series 180 degree Pony Wall Mount Hinge

Item #: GEN280CH by CR Laurence

See reviewsSee reviews
In Stock

$73.03

/each
SAVE UP TO 7.30

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Self-Centering with Reversible 5º Pivot Pin Custom Pivot Pin Available
  • Many Standard Finishes
  • Pony Wall Mount for 180º Application
  • Use Monolithic Tempered Glass

Height

3-1/2

Width

2-3/16

Finish

Polished Chrome

Back Plate

Short

Glazing Thickness

5/16 To 1/2

Edge Profile

Square

Adjustable

No

Finish/Color

Polished Chrome

Series

Geneva

Self-Centering

Yes

5 Degree Pre-Set

No

Maximum Door Width - 2 Hinges (Inches)

28

Maximum Door Width - 3 Hinges (Inches)

32

Maximum Door Weight - 3 Hinges (Pounds)

120

Maximum Door Weight - 2 Hinges (Pounds)

80

Mounting Type

Wall Mount

Material

Brass

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32

Mounting Style

Wall mount

Height (Inches)

3-1/2

Max Dr Weight - 3 Hinges (Lbs)

120

Max Dr Weight - 2 Hinges (Lbs)

80

Width (Inches)

2-3/16

Max Dr Width - 3 Hinges (Inch)

32

Max Dr Width - 2 Hinges (Inch)

28
