The variety of styles and finishes in our Concord Series allows the installer/designer to create custom shower enclosures limited only by their imagination. These beautifully finished, solid brass forged Concord Hinges make it possible to mount 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass shower doors without surrounding frames, so the door has an almost "floating" appearance. Their heavy-duty stainless steel springs allow the door to swing 90 degree in and 90 degree out. A friction cam allows the door to be firmly maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" glass of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" glass of 34" (864 mm) and maximum door width for 1/2" of 30" (762 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Special Features: Our original hinge offers years of reliability and elegance.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

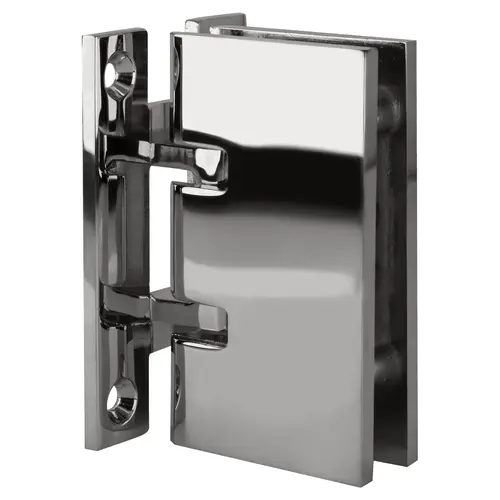

CRL SDH037CH Polished Chrome Concord 037 Series Wall Mount 'H' Back Plate Hinge
Item #: SDH037CH by CR Laurence
1 1
reviews
HURRY! Low in stock
$107.98
/eachSAVE UP TO 10.80
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Self-Centering Action
- Wall Mount
- Use Monolithic Tempered Glass
Width
3-1/2
Height
2
Finish
Polished Chrome
Maximum Door Width - 1/2 Glass - 2 Hinges (Inches)
26
Mounting Type
Wall Mount
Material
Brass
Maximum Door Weight - 3 Hinges (Pounds)
120
Maximum Door Weight - 2 Hinges (Pounds)
80
Maximum Door Width - 3/8 Glass - 2 Hinges (Inches)
28
Maximum Door Width - 3/8 Glass - 3 Hinges (Inches)
34
Back Plate
'H'
Glazing Thickness
3/8 to 1/2
Adjustable
No
Finish/Color
Polished Chrome
Maximum Door Width - 1/2 Glass - 3 Hinges (Inches)
30
Self-Centering
Yes
5 Degree Pre-Set
No
Mounting Style
Wall mount
Height (Inches)
2
Maximum Door Width - 1/2 Glass
30
Max Dr Weight - 3 Hinges (Lbs)
120
Max Dr Weight - 2 Hinges (Lbs)
80
Width (Inches)
3-1/2
Maximum Door Width - 3/8 Glass
34
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 1/2 Glass - 2 Hinges
26 in. (660 mm)
Maximum Door Width - 1/2 Glass - 3 Hinges
30 in. (762 mm)
Maximum Door Width - 3/8 Glass - 2 Hinges
28 in. (711 mm)
Maximum Door Width - 3/8 Glass - 3 Hinges
34 in. (864 mm)
The variety of styles and finishes in our Concord Series allows the installer/designer to create custom shower enclosures limited only by their imagination. These beautifully finished, solid brass forged Concord Hinges make it possible to mount 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass shower doors without surrounding frames, so the door has an almost "floating" appearance. Their heavy-duty stainless steel springs allow the door to swing 90 degree in and 90 degree out. A friction cam allows the door to be firmly maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" glass of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" glass of 34" (864 mm) and maximum door width for 1/2" of 30" (762 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Special Features: Our original hinge offers years of reliability and elegance.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
.
