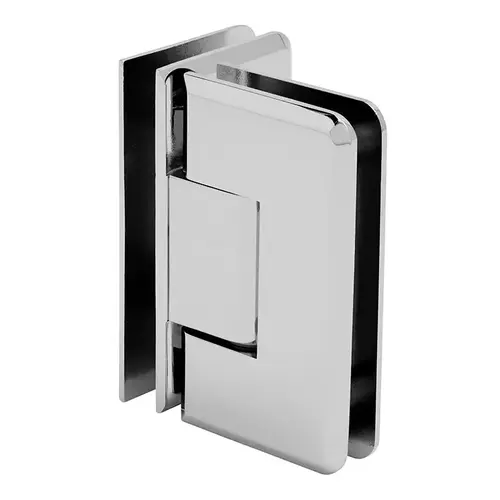

CRL C0L092CH Polished Chrome Cologne 092 Series 90 degree Glass-to-Glass Hinge
Item #: C0L092CH by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- 90º Glass-to-Glass
- Use Monolithic Tempered Glass
Height
3-15/16
Width
2-1/4" (57 mm)
Finish
Polished Chrome
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
3/8 to 1/2
Maximum Door Width
36
Edge Profile
Beveled
Finish/Color
Polished Chrome
Series
Cologne
Width - Sidelite Portion (Inches)
2-1/4
Self-Centering
Yes
Maximum Door Weight - 3 Hinges (Pounds)
140
Maximum Door Weight - 2 Hinges (Pounds)
110
Width - Door Portion (Inches)
2-1/4
Glass To Glass Angle (Degrees)
90
Mounting Style
Glass To Glass
Height (Inches)
3-15/16
Max Dr Weight - 3 Hinges (Lbs)
140
Width - Sidelite Portion (Inch
2-1/4
Max Dr Weight - 2 Hinges (Lbs)
110
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Width - Sidelite Portion
2-1/4
Width - Door Portion
2-1/4 in. (57 mm)
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Opening Style
Swing(side)
Enclosure Type
Corner, Tailor Made Solutions
Design Style
Beveled
