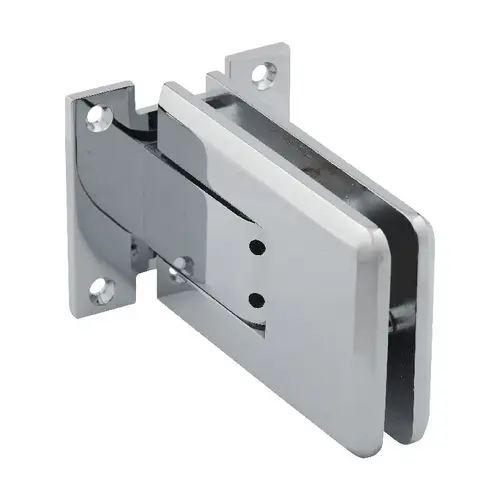

CRL ATL01CH Polished Chrome Atlas Glass Door Hinge
Item #: ATL01CH by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Easy Closed Position Adjustment for Double Door or Inline Panel Applications
- Easy to Set Closed Position
- Four Architectural Finishes
- Hold Open at 90 Degrees
- Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
- Self-Centering Function
5/16" to 1/2" (8 to 12 mm) Glass
39"/1 m - 140 lbs/63.5 kg
MAXIMUM CAPACITIES
Using Two Hinges
Door Width
39" (1 m)
Length
5-7/8" (149 mm)
Width
5 7/8
Height
3-9/16
Finish
Polished Chrome
Back Plate
Full
Glazing Thickness
5/16 To 1/2
Maximum Door Width
39
Edge Profile
Beveled
Adjustable
Yes
Finish/Color
Polished Chrome
Series
Atlas
Self-Centering
Yes
Maximum Door Weight - 2 Hinges (Pounds)
140
Mounting Type
Wall Mount
Material
Brass
Maximum Door Weight
140
