CRL Beveled Wall Mount Clamp Notch-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water resistant seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 Requires Notch; BCU4, BGC037 and BGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

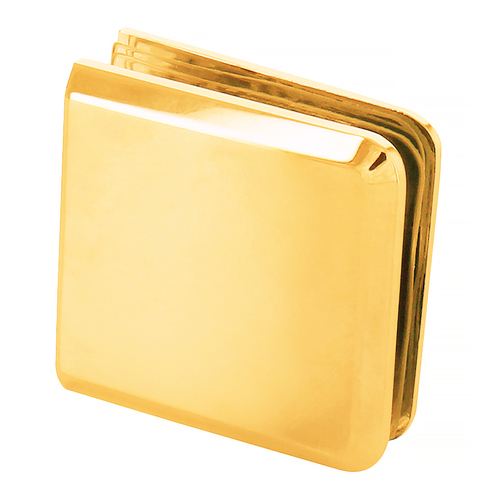

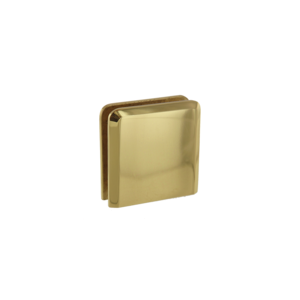

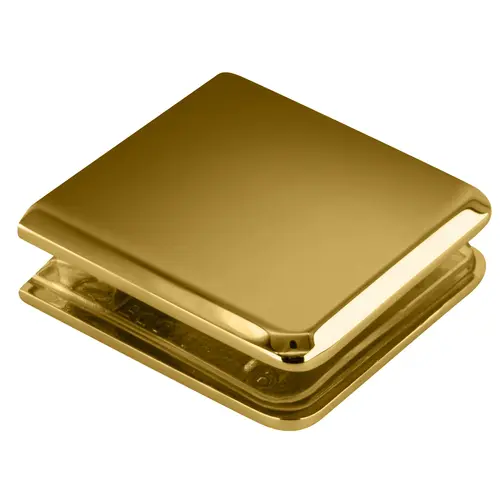

CRL BGCU1BR Polished Brass Beveled Style Notch-in-Glass Fixed Panel U-Clamp
Item #: BGCU1BR by CR Laurence
11 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- For 3/8" to 1/2" (10 to 12 mm) Glass
- Glass Fabrication Required to Accommodate Clamps
- Solid Brass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Height
2" (51 mm)
Width
2" (51 mm)
Size
2" (51 mm) Wide x 2" (51 mm) High
Hole Required in Glass
3/8" to 1/2" (10 to 12 mm)
Finish
Polished Brass
Material
Brass
Mounting Type
Wall / Ceiling Mount
Glazing Thickness
3/8 to 1/2
Finish/Color
Polished Brass
Mounting Style
Wall / Ceiling Mount
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Beveled
Product Overview
CRL Beveled Wall Mount Clamp Notch-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water resistant seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 Requires Notch; BCU4, BGC037 and BGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
