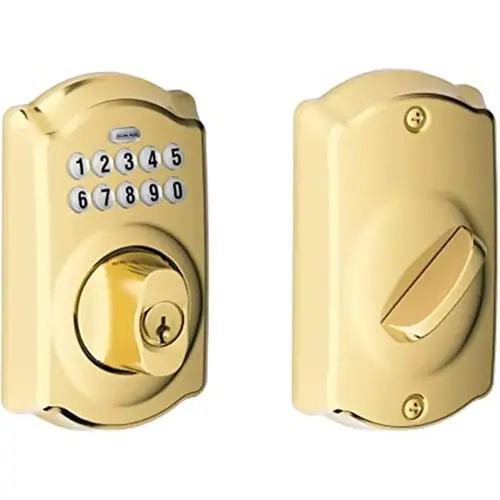

Schlage Residential BE365 PLY 505 Plymouth Electronic Keypad Deadbolt C Keyway with 12287 Latch and 10116 Strike Lifetime Brass Finish
Item #: BE365 PLY 505 by Schlage Residential
UPC #: 043156894567
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Box Pack
- Electronic Keypad Deadbolt - Unlocked by Keypad or Key from Outside or by Inside Thumbturn
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & Finish Warranty
- 3 Year Limited Electronic Warranty
- Fingerprint Resistant
Finish
505 Bright Brass, Lifetime Finish
Function
365-Keypad Deadbolt
Series
BE Series
Design
Plymouth
Strike
Round Corner with Reinforcer
Backset
Dual Option-Round, Drive-In
Package Qty
1
Color Code
505
Lock Platform
Deadbolt Lock
Base Material
Steel
Finish Description
Bright Polished Brass
Grade
ANSI/BHMA Grade 2
Keyblank Grouping
SCHR-C-5-1
Cylinder Type
Conventional Cylinder
Product Type
Keypad Lock
Rose/Escutcheon Trim
PLY-Plymouth
Keyway
Schlage C
Projection
2.1900
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
4.22 Inches
Product Length
3.1700
Included Components
(1) Key
ADA Approved
False
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Metal
Box Length
8.3900
Box Width
6.7700
Box Height
4.2200
Code Capacity
19 codes
Trim Style
Plymouth
For Use With
Existing, Standard Pre-Drilled Doors
Warranty
3 yr Electronics; Limited Lifetime Mechanical/Finish
Number of Codes
2 Pre-Set Unique 4-Digit Access Codes, Storage of Up to 19 Access Codes
Product Width
6.77 Inches
ADA Compliant
No
Finish Family
Polished Brass
Product Depth
8.39 Inches
Standards
ANSI/BHMA A156.36-2010; ANSI/BHMA A156.40-2015
Faceplate Dimension
1" x 2-1/4"
Function Family
Keypad Lock
Battery Type
(1) 9V
Features
Deadbolt Thrown From Outside by Keyway Turn After Pressing Schlage Button or by Inside Thumbturn; Deadbolt Retracted From Outside by Entering Valid User Code then Rotating Keyway Turn or by Inside Thumbturn
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
4.22x6.77x8.39"
Sub-Series
RH_Keypad_Touchscreen_Locks_schlage_residential_15
Collection
Plymouth
Package Height
5"
Package Length
9"
Package Width
6"
Item Weight
5.25 lbs
