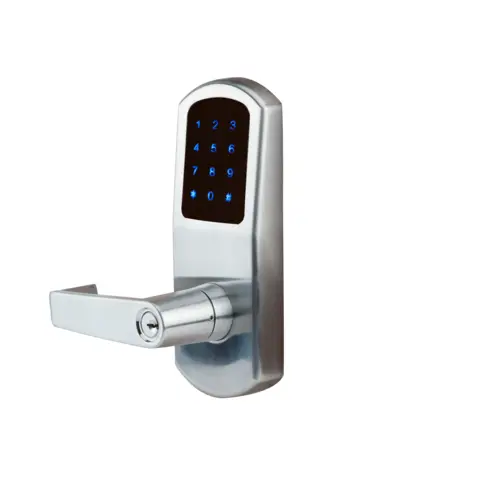

PDQ GTS-STP-116-PHL-626-234-ASA-D-SCC-KD GTS-STP Cylindrical Lock, Satin Chrome

Item #: GTS-STP-116-PHL-626-234-ASA-D-SCC-KD by PDQ Locks

Item Discontinued!
See reviewsSee reviews

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Chrome

Grade

ANSI/BHMA Grade 1

Backset

2-3/4 Inch

Keyway

Schlage C

Function

116-Single Cylinder

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Cylinder Type

Conventional

Finish Description

Satin Chrome

Lever Style

PHL-Philadelphia

Keyblank Grouping

SCHL-C-6-1

ADA Approved

False

Keying Charges

CCAM

Product Type

Electronic Cylindrical Lock

Series

GTS-STP Series

Handing

Non-Handed

Warranty

25 Year

Color Code

626/US26D

Door Thickness

1-3/4 to 2-1/4 Inch

Strike Type

ANSI

ADA Compliant

YES

Finish Family

Satin Chrome

Standards

UL/CUL 10C Listed for 3 hr; Certified to ANSI/BHMA A156.2-2011; California Education Code Compliant; Federal Specification FF-H-10C; Florida Building Code HVHZ Listed

Function Description

Outside Lever Always Locked; Outside Lever is Momentarily Unlocked by a Valid Credential or by Key; Outside Lever is Relocked After Predetermined Time as Managed by the Authorized Credential Holder

Features

Designed for Quick Installation. Fits Standard 161 Door Prep

Application

Through Door Thru-Bolting

Hand

Non-Handed

Manufacturer Parent

PDQ Locks

Sub-Series

GTS-STP-116-PHL-626-234-ASA-D-SCC-KD
