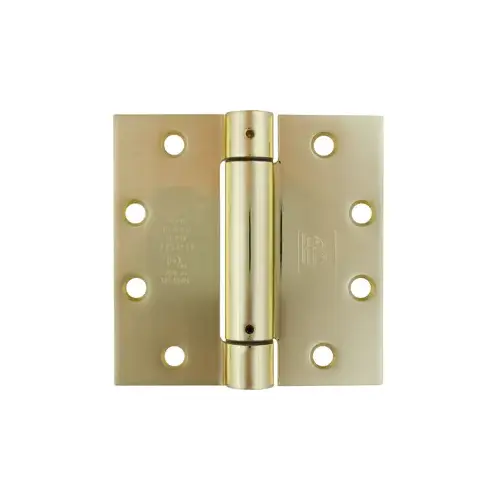

Single Acting Spring Hinge, Full Mortise Standard Weight, 4.5" x 4.5" (4545), Ferrous Steel Base, Bright Brass US3/633

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

PBB Inc SP81-US3-4.5 X 4.5 Single Acting Spring Hinge, Full Mortise Standard Weight, 4.5" x 4.5" (4545), Ferrous Steel Base, Bright Brass US3/633

Item #: SP81-US3-4.5 X 4.5 by PBB Inc

See reviewsSee reviews
HURRY! Low in stock

$43.29

/each
SAVE UP TO 4.33

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

134606

Product Overview

PBB Full Mortise U.L. Listed Spring Hinge

GENERAL PRODUCT INFORMATION:
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).

HINGE SWAGING:
A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16" clearance between leaves.

  • Spring hinge door closer Model K8107/K5107 passed a 1,000,000 cycle UL test in accordance with Underwriters Laboratories for door closers, with or without integral smoke detectors.
  • UL listed for doors up to 4' x 8', wieghing up to 180lbs.
  • For non-labeled doors 4'0" wide 4" x 4" Spring hinges are not recommended. For non-labeled doors over 7'6" in height, use an additional hinge for each additional 30" of height or fraction thereof.
  • Maximum Door Size: For labeled doors 3' x 7' the maximum door size is based on the limits set forth by NFPA Standard #80. Labeled doors require Ball Bearing hinges.



    • SPECIFICATIONS

  • Height of hinge:
    • 4.50 (+.000/-.015) for 4-1/2" x 4"
    • 4.50 (+.000/-.015) for 4-1/2" x 4-1/2"
  • Width:
    • 4.00 ± .015 for 4-1/2" x 4"
    • 4.50 ± .015 for 4-1/2" x 4-1/2"
  • MATERIAL GAUGE:
    • .134 ± .005 for 4-1/2" x 4"
    • .134 ± .005 for 4-1/2" x 4-1/2"

    FASTENERS

  • 4-1/2" STANDARD SCREW SIZE
    • FHMS - 12-24 x 1/2"
    • FHWS - 12 x 1-1/4"

    FINISHES

  • SP81 (ANSI K8107)
    Steel-Polished and Plated or Bonderized and Prime Coated for Painting.

  • SP51 (ANSI K5107)
    Stainless Steel-Polished and Satin Finish
