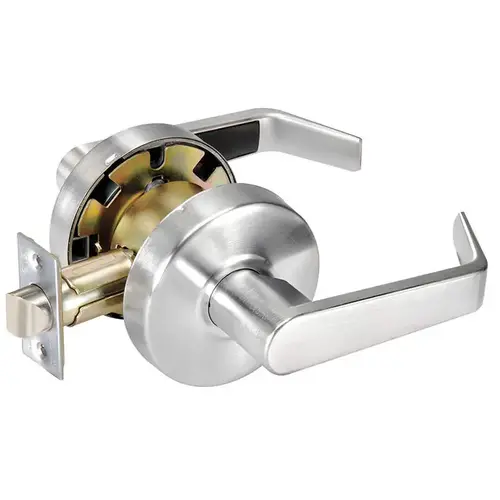

Yale Commercial AU4601LN 626 Grade 2 Passage/closet Latch Cylindrical Lock, Augusta Lever, Satin Chrome
Item #: AU4601LN 626 by Yale
UPC #: 840067695739
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ANSI / BHMA A156.2 Grade 2
- ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
- Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
- Universal Front for Both Flat and Beveled Door Edges
- Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
- Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
- Non Handed
- Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
- Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
- Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
- Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.
Finish
Satin Chrome
Function
01LN-Passage/Closet
Series
4600LN Series
Design
Augusta
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Backset
2-3/4 Inch
Thickness
1-3/8" - 1-3/4"
Strike Number
497
Package Volume
0
Latch Number
MCD234
Latch Type
Deadlatch
ANSI Function
F75
Hand
Not Handed
Grade
ANSI/BHMA Grade 2
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Screws
Combination
Bolt Protection
1/2"
Color Code
626/US26D
Strike Type
Curved Lip
Rose/Escutcheon Design
3-1/2 In. Diameter
Base Material
Brass or Bronze
Strike Height
4-7/8"
Lever/Knob Design
AU - Augusta
Finish Description
Satin Chrome
Lever Style
AU-Augusta
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
ADA Approved
False
Door Thickness
1 3/8" to 1 3/4"
Lever Length
5.0000
Projection
2.5000
Sub-Series
AU-4601LN-626
Lever Style Family
Straight Return Lever
Latch Bolt Material
Stainless Steel
Knob/Lever Size
5 Inch
Lever Length-Inches
5 Inch
Manufacturer Parent
Assa Abloy
Features
Versatile; Economical; Secure; Strong and Reliable
Trim Material
Cast Zinc (Lever); Brass (Rose)
Product Projection
2-1/2 Inch
Strike Lip
1-1/4 Inch
Latch bolt size
2-3/4 Inch
Function Family
Passage/Hall/Closet
Function Description
Latch retracted by knobs/levers at all times
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Strike Size
4-7/8" x 1-1/4"
Finish Family
Satin Chrome
ADA Compliant
YES
Latch Throw
1/2 Inch
Rose Diameter
3-3/8 Inch
Handle Type
Lever
Warranty
3 year mechanical
Application
Commercial Applications
Pack Size
1
