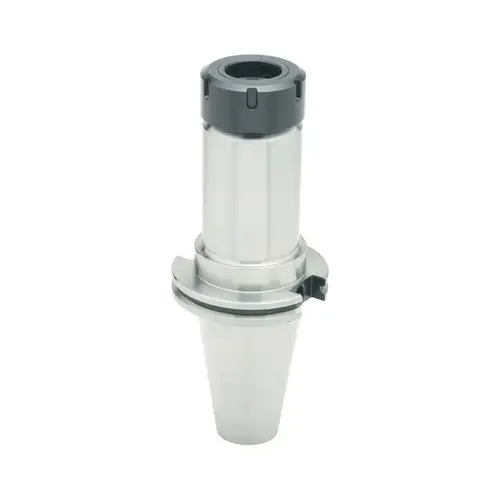

Parlec C50-40ERP612Click To Copy Collet Chuck: 3 to 30 mm Capacity, ER Collet, Taper Shank

Item #: C50-40ERP612 by Parlec

See reviewsSee reviews
See reviews summary

$452.35

/each
SAVE UP TO 45.23

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Torque

1752" lbs

Product Type

Taper Collet Chuck

B

2.47"

D

4.1"

Maximum RPM

20000

Diameter

2.47"

Type

ER Coolant Collet

Shank Type

Taper

Actuator Type

Wrench

Taper Size

CAT50

Collet Series

ER40

Collet System

ER

Maximum Collet Capacity (Decimal Inch)

1.1811

Maximum Collet Capacity (mm)

30.00

Minimum Collet Capacity (Decimal Inch)

0.1181

Minimum Collet Capacity (mm)

3.00

Overall Length (Decimal Inch)

10.1200

Product Service Code

5136

Projection (Decimal Inch)

6.1200

Through Coolant

Yes

TIR (Decimal Inch)

0.000200

Vendor Drop Ship

N

Balanced To Rpm

20000

Collet Nut Diameter (Decimal Inch)

2.4700

Coolant Type

Through-Spindle

Nose Diameter (Decimal Inch - 4 Decimals)

2.4700

Product Overview
The Parlec collet chuck is easy to use. This product has a 2.47 in diameter. Most of the part numbers in this category have a maximum RPM. The maximum RPM is designated for both safety and as the upper limit for performance. In this case the maximum RPM is 20000. The working range for this collet chuck is.0860 in-1.1811 in. Rated for up to 146 ft lbs torque. Packaged 1 per pack.
Specifications:

Range: .0860"-1.1811"

Tool Holder Type: Toolholding Collet

C: 6.12"

Series: ER 40
