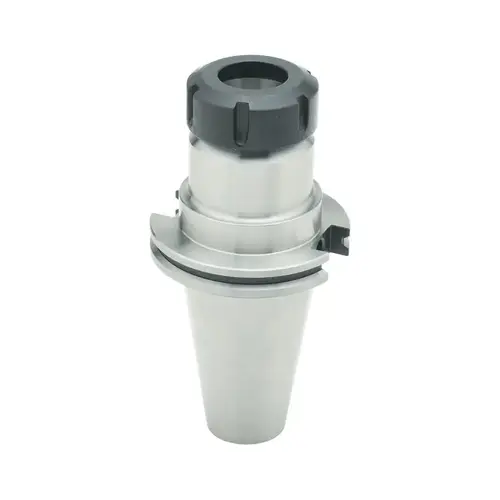

Parlec C50-40ERF400Click To Copy Collet Chuck: 3 to 30 mm Capacity, ER Collet, Taper Shank
Item #: C50-40ERF400 by Parlec
See reviewsSee reviews
In Stock
$345.00
/eachSAVE UP TO 34.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Diameter
2.47"
Maximum RPM
20000
D
4.1"
B
2.47"
Product Type
Taper Collet Chuck
Torque
1944" lbs
Type
ER Coolant Collet
Shank Type
Taper
Actuator Type
Wrench
Taper Size
CAT50
Collet Series
ER40
Collet System
ER
Maximum Collet Capacity (Decimal Inch)
1.1811
Maximum Collet Capacity (mm)
30.00
Minimum Collet Capacity (Decimal Inch)
0.1181
Minimum Collet Capacity (mm)
3.00
Overall Length (Decimal Inch)
8.0000
Overall Length (Inch)
8
Product Service Code
5136
Projection (Decimal Inch)
4.0000
Through Coolant
Yes
TIR (Decimal Inch)
0.000200
Vendor Drop Ship
N
Balanced To Rpm
20000
Collet Nut Diameter (Decimal Inch)
2.4700
Coolant Type
Through-Spindle
Nose Diameter (Decimal Inch - 4 Decimals)
2.4700
Projection (Inch)
4
Product Overview
The Parlec collet chuck is easy to use. This part has a 2.47 in diameter. Most of the products in this category have a maximum RPM. The maximum RPM is designated for both safety and as the upper limit for performance. In this case the maximum RPM is 20000. The working range for this collet chuck is.0860 in-1.1811 in. Rated for up to 162 ft lbs torque. Packaged 1 per pack.
Specifications:
Specifications:
Tool Holder Type: Toolholding Collet
C: 4"
Series: ER 40
Range: .0860"-1.1811"
