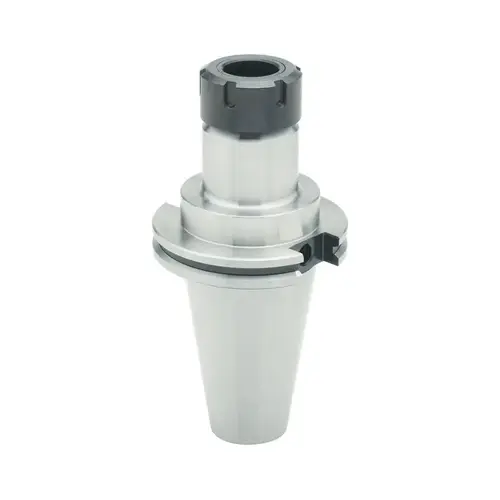

Collet Chuck: 2 to 20 mm Capacity, ER Collet, Taper Shank

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Parlec C50-32ERP412Click To Copy Collet Chuck: 2 to 20 mm Capacity, ER Collet, Taper Shank

Item #: C50-32ERP412 by Parlec

See reviewsSee reviews
See reviews summary

$363.12

/each
SAVE UP TO 36.31

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Diameter

1.97"

Maximum RPM

20000

D

3.88"

B

1.97"

Product Type

Taper Collet Chuck

Torque

1200" lbs

Type

ER Coolant Collet

Shank Type

Taper

Actuator Type

Wrench

Taper Size

CAT50

Collet Series

ER32

Collet System

ER

Maximum Collet Capacity (Decimal Inch)

0.7874

Maximum Collet Capacity (mm)

20.00

Minimum Collet Capacity (Decimal Inch)

0.0787

Minimum Collet Capacity (mm)

2.00

Overall Length (Decimal Inch)

8.1200

Product Service Code

5136

Projection (Decimal Inch)

4.1200

Through Coolant

Yes

TIR (Decimal Inch)

0.000200

Vendor Drop Ship

N

Balanced To Rpm

20000

Collet Nut Diameter (Decimal Inch)

1.9700

Coolant Type

Through-Spindle

Nose Diameter (Decimal Inch - 4 Decimals)

1.9700

Product Overview
The Parlec collet chuck is easy to use. This part has a 1.97 in diameter. Most of the part numbers in this category have a maximum RPM. The maximum RPM is designated for both safety and as the upper limit for performance. In this case the maximum RPM is 20000. The working range for this collet chuck is.0540 in-1.0000 in. Rated for up to 100 ft lbs torque. Packaged 1 per pack.
Specifications:

Range: .0540"-1.0000"

Tool Holder Type: Toolholding Collet

C: 4.12"

Series: ER 32
