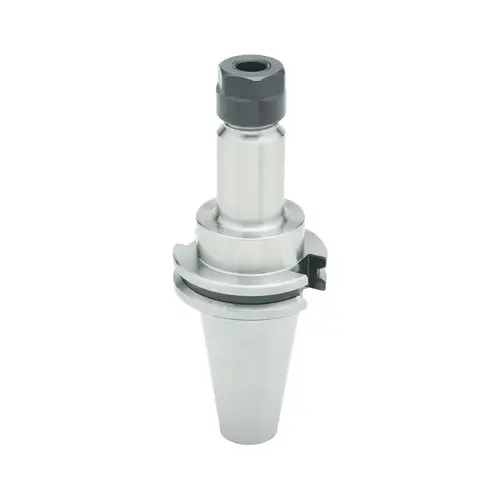

Parlec C40-16ERP512Click To Copy Collet Chuck: 0.5 to 10 mm Capacity, ER Collet, Taper Shank
Item #: C40-16ERP512 by Parlec
See reviewsSee reviews
HURRY! Low in stock
$348.28
/eachSAVE UP TO 34.83
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Diameter
1.1"
Maximum RPM
25000
D
3.5"
B
1.1"
Product Type
Taper Collet Chuck
Torque
504" lbs
Type
ER Coolant Collet
Shank Type
Taper
Actuator Type
Wrench
Taper Size
CAT40
Collet Series
ER16
Collet System
ER
Maximum Collet Capacity (Decimal Inch)
0.3937
Maximum Collet Capacity (mm)
10.00
Minimum Collet Capacity (Decimal Inch)
0.0197
Minimum Collet Capacity (mm)
0.50
Overall Length (Decimal Inch)
7.8100
Product Service Code
5136
Projection (Decimal Inch)
5.1200
Through Coolant
Yes
TIR (Decimal Inch)
0.000200
Vendor Drop Ship
N
Balanced To Rpm
25000
Collet Nut Diameter (Decimal Inch)
1.1100
Coolant Type
Through-Spindle
Nose Diameter (Decimal Inch - 4 Decimals)
1.1100
Product Overview
The Parlec collet chuck is easy to use. This SKU has a 1.1 in diameter. Most of the items in this category have a maximum RPM. The maximum RPM is designated for both safety and as the upper limit for performance. In this case the maximum RPM is 25000. The working range for this collet chuck is.0019 in-.3937 in. Rated for up to 42 ft lbs torque. Packaged 1 per pack.
Specifications:
Specifications:
Range: .0019"-.3937"
Tool Holder Type: Toolholding Collet
C: 5.12"
Series: ER 16
