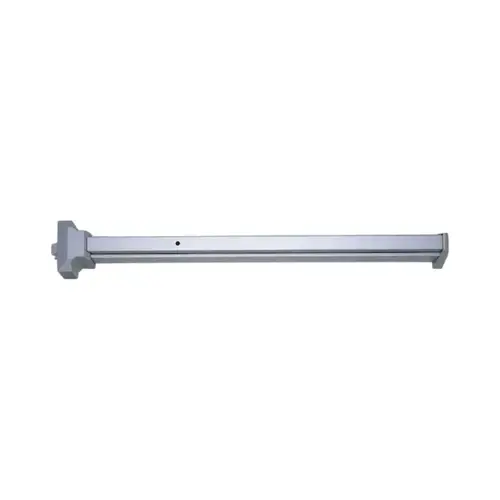

Pamex E8000/EO3-AL Rim Exit Only Exit Device for 32" to 36" Wide Aluminum Finish Satin Chrome

Item #: E8000/EO3-AL by Pamex

See reviewsSee reviews
In Stock

$128.04

/each
SAVE UP TO 12.80

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Grade

ANSI/BHMA Grade 2

Application

Standard Duty Commercial Application

Backset

2-3/4 Inch

Warranty

10 Year Mechanical, 5 Year Finish

Color Code

626/US26D

Function

EO-Exit Only

Device Length

36 Inch (3 Foot)

Fire Rated

No

Latch Throw

3/4 Inch

Mounting Hardware Included

Furnished standard with sheet metal & machine screws

Finish Description

Satin Chrome

Dogging Options

Hex Key Dogging

Product Length

36 Inches

ADA Compliant

YES

Finish Family

Satin Chrome

Included Components

Mounting Flanges with .073" Wall Thickness (14 Gauge). 2" Stainless Steel Mounting Screws.

Strike Size

For 5/8" stop, plus shim for 1/2" stop

Product Material

Push bar is made of extruded anodize aluminum and spring is made of stainless steel

Standards

ANSI A156.3, Grade 2, UL listed for Panic and UL10C, UBC 7-2-1997 codes

Stile Width

4-1/4" Minimum

Function Family

Exit Devices

Product Projection

2-1/2" maximum projection, 1-7/8" when depressed

Features

Compatible with Pamex E5000, E7000, & E8000 trims & accessories

Product Type

Exit Device

Series

E8000 Series

Manufacturer Parent

Pamex

Latch Bolt Material

Stainless Steel

Sub-Series

Pamex-E8000-EO3
