OSSI OS-640Click To Copy Proximity Reader Keypad Wall Mount

Item #: OS-640 by OSSI

See reviewsSee reviews
See reviews summary

$414.70

/each
SAVE UP TO 41.47

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

161360

Product Overview

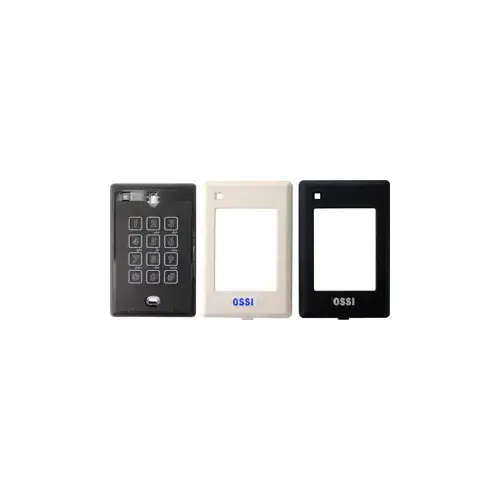

Overland Safety Systems Proximity Reader

Part No. OS-640

The Proximity reader and Keypad uses proven digital radio frequency identification (RFID) technology. It can be mounted directly on metal or to standard U.S.A. single-gang wall boxes and is ideal for applications requiring an access credential and/or personal identification number (PIN) such as high security dual verification. Keypad data is transmitted via the reader’s data lines in either an 8-bit burst or 26-bit Wiegand data format. The alpha-numeric keypad itself makes use of a durable (no moving parts), non-mechanical capacitive technology

EASY INSTALLATION

  • Mounts to US single-gang wall box or to flat surface. Can be mounted directly on metal with spacer.
  • Quick installation, with only two mounting screws necessary
  • Horizontal and vertical mounting slots standard for alignment
  • Electronics are sealed in weather-and tamper-resistant epoxy potting for both indoor and outdoor operation
  • IP67 rating

    • ADVANCED TECHNOLOGY

  • Supports 125-kHz Proximity Technology
  • Supports OSSI Proximity cards and tags
  • Multi Manufacturer Technology: Supports Farpointe Data, AWID and HID proximity tags for replacement in any system.
  • Supports 8 Bit Burst and 26 Bit Wiegand Standard

    • POWER

  • +5 to 14 VDC (12 VDC nominal) 5mA minimal, 45 mA typical, 80 mA peak
  • Linear power supply recommended

    • INPUTS/OUTPUTS

  • Standard external piezo beeper
  • Standard external four-state LED

    • READ RANGE

  • Up to 6 inches (152 mm) for OS-CS-P1X
  • Up to 4 inches (102 mm) for OS-ISO-2PX
  • Up to 4 inches (102 mm) for OS-ISODUO-2SX
  • Up to 3 inches (76 mm) for OS-KT-P3X

    • MOUNTING

  • Can be mounted directly on metal
  • Cable from the reader can be run up to 500 ft.
