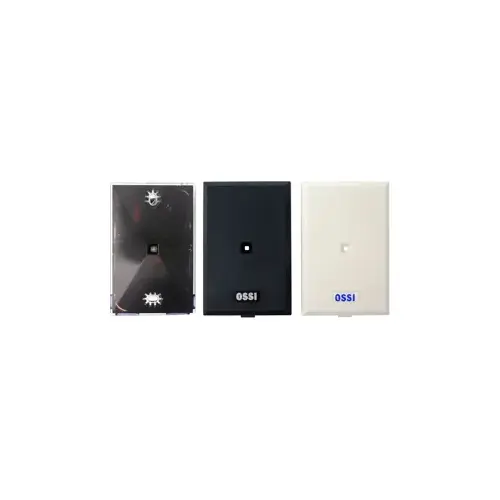

Overland Safety Systems Proximity Reader

Part No. OS-500

The Proximity Reader uses proven digital radio frequency identification (RFID) technology. It can be mounted directly to a metal door frame (mullion) or any flat surface. The standard features include the ability to read OSSI, Farpointe Data, HID and AWID proximity cards and tags. To allow both indoor and outdoor operation, the electronics are sealed in tamper resistant epoxy potting.

EASY INSTALLATION

  • Mounts to US single-gang wall box or to flat surface. Can be mounted directly on metal with spacer.
  • Quick installation, with only two mounting screws necessary
  • Horizontal and vertical mounting slots standard for alignment
  • Electronics are sealed in weather-and tamper-resistant epoxy potting for both indoor and outdoor operation
  • IP67 rating

    • ADVANCED TECHNOLOGY

  • Supports 125-kHz Proximity Technology
  • Supports OSSI Proximity cards and tags
  • Multi Manufacturer Technology: Supports Farpointe Data, AWID and HID proximity tags for replacement in any system.

    • POWER

  • +5 to 14 VDC (12 VDC nominal) 5mA minimal, 45 mA typical, 80 mA peak
  • Linear power supply recommended

    • INPUTS/OUTPUTS

  • Standard external piezo beeper
  • Standard external four-state LED

    • READ RANGE

  • Up to 6 inches (152 mm) for OS-CS-P1X
  • Up to 4 inches (102 mm) for OS-ISO-2PX
  • Up to 4 inches (102 mm) for OS-ISODUO-2SX
  • Up to 3 inches (76 mm) for OS-KT-P3X

    • MOUNTING

  • Can be mounted directly on metal
  • Cable from the reader can be run up to 500 ft.
