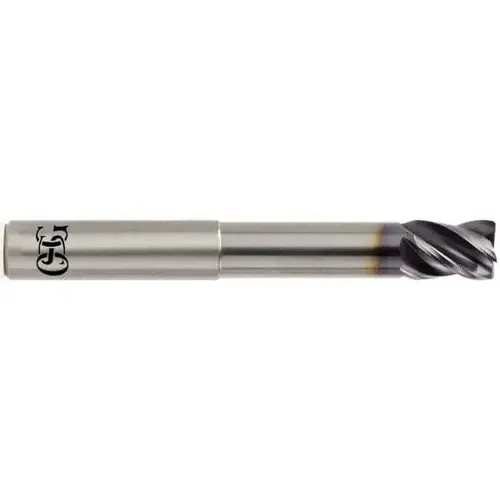

Corner Chamfer End Mill: 1" Dia, 1-1/8" LOC, 4 Flutes, 0.02" Chamfer Width, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

OSG VG446-1004Click To Copy Corner Chamfer End Mill: 1" Dia, 1-1/8" LOC, 4 Flutes, 0.02" Chamfer Width, Solid Carbide

Item #: VG446-1004 by OSG

See reviewsSee reviews
See reviews summary

$708.86

/each
SAVE UP TO 70.89

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Variable

Shank Type

Weldon Flat

Helix Angle

35

Number of Flutes

4

Pitch

Normal

Chipbreaker

No

Length Type

Extended

Cutting Direction

Right Hand

Series

VG446

Variable Helix

No

Coating/Finish

TiAlN

Coolant Through

No

Length Of Cut (Decimal Inch - 4 Decimals)

1.1250

Length of Cut (Inch)

1-1/8

Manufacturers Catalog Number

VG446-1004

Overall Length (Decimal Inch)

5.5000

Overall Length (Inch)

5-1/2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

1.0000

Shank Diameter (Inch)

1

Vendor Drop Ship

N

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

Yes

Flute Direction

Right Hand

Helix Style

Medium

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

1.0000

Mill Diameter (Inch)

1

Neck Diameter (Decimal Inch)

0.9400

Single Or Double End

Single

Variable Index

Yes

Reach Length (Inch)

3-1/4

Mill Diameter Tolerance

+0.0000 to -0.0015 in

Chamfer Angle

45

Reach Length (Decimal Inch)

3.2500

Chamfer Length (Decimal Inch)

0.0020

Chamfer Width (Decimal Inch)

0.0200

Shank Diameter Tolerance

h6

Product Overview
Corner Chamfer End Mill: 1" Dia, 1-1/8" LOC, 4 Flutes, 0.02" Chamfer Width, Solid Carbide 5-1/2" OAL, 1" Shank Dia, 35 degree Helix, TiAlN Coated, Centercutting
