Onward 246015170 The Classic Barn Door Set
Item #: 246015170 by Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Stopper
Two
Soft-Closing
No
Screw/Nail Included
Yes
Packaging Format
Box
Track type
Flat Bar
Track Mounting
Wall Mount
Running Track Fixing
Surface Mount
Roller Position
Upper
Height Clearance
4 7/8 in
Groove Width at the Bottom of Door
9/32 in
Manufacturing Material
Stainless Steel
Door Movement
Straight Sliding
Groove Needed for Guiding System
Yes
Door Projection
2 17/32 in
Door Installation
Top Hung
Door Material
Wood
Number of Doors
1
Product Type
Hardware Set
Groove Depth
25/32 in
Roller Type
Ball Bearing
Door Height
10 ft
Door Width
24 to 60 in
Door Thickness
1 3/8 to 1 3/4 in
Load Capacity
33.1 to 176 lb
Application
Closet and Walk-In Closet, Standard Access Door, Barn Door
Style
Rustic
Overall Length
78 3/4 to 118 in
Finish
Stainless Steel (170)
Product Overview

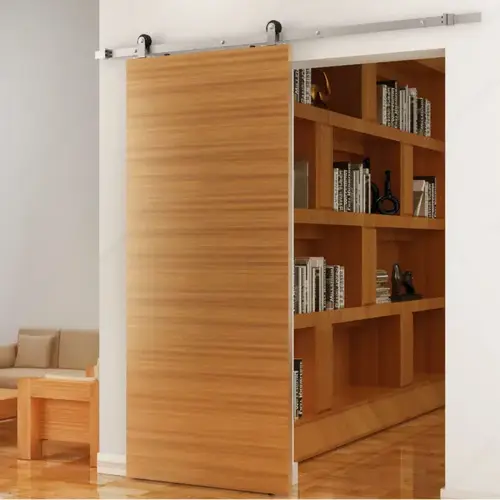

The Classic Barn Door is a wall mount sliding door system for 1 wood door with visible stainless steel flat bar steel top mount trolley for doors weighing up to 80 kg (176 lb). Select from 3 choices of standard flat bar upper track sets with wall mounts and fastener lag bolts for wood wall construction. Each track is pre-drilled for connectors to join tracks and soft-close mechanisms (sold separately). For residential applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
