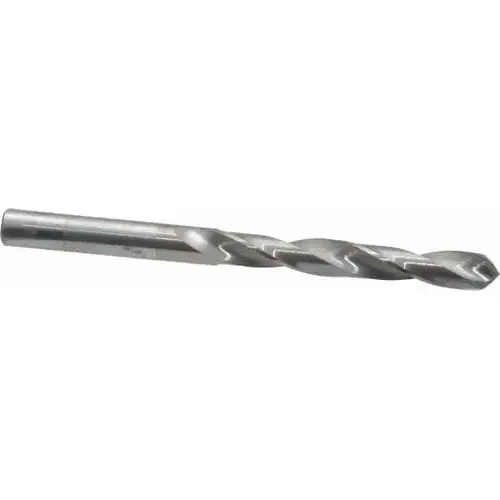

Onsrud 67-815Click To Copy Jobber Length Drill Bit: 1/4" Dia, 118 degree, Solid Carbide Bright/Uncoated
Item #: 67-815 by Onsrud
See reviewsSee reviews
In Stock
$95.96
/eachSAVE UP TO 9.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Number of Flutes
2
Cutting Direction
Right Hand
Series
67-800
Point Type
8 Facet
Drill Bit Material
Solid Carbide
Spiral Type
Regular
Tool Application
Drilling
Coating/Finish
Bright/Uncoated
Coolant Through
No
Double Margin
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.2500
Drill Bit Size (Inch)
1/4
Drill Bit Size Range (Decimal Inch)
0.2500 - 0.3000
Drill Point Angle (Degrees)
118
Flute By Diameter Ratio
8xD
Flute Length (Decimal Inch)
2.0000
Flute Length (Inch)
2
Maximum Drilling Depth (Decimal Inch)
2.0000
Maximum Drilling Depth (Inch)
2
Number of Flats
0
Overall Length (Decimal Inch)
3.2500in
Overall Length (Inch)
3-1/4in
Primary Workpiece Material
Composite
Primary Workpiece Material Code
O
Shank Diameter (Decimal Inch)
0.2500
Shank Diameter (Inch)
1/4in
Shank Length (Decimal Inch)
1.2500in
Shank Length (Inch)
1-1/4in
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Web Configuration
Parallel
Web Thinning
Web-Thinned
Product Overview
Jobber Length Drill Bit: 1/4" Dia, 118 degree, Solid Carbide Bright Coated, 3-1/4" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 67-800
