One Sided Deadbolt With Plate Satin Stainless Steel Finish with Adjustable Latch and Radius Strike

Roll over image to zoom in

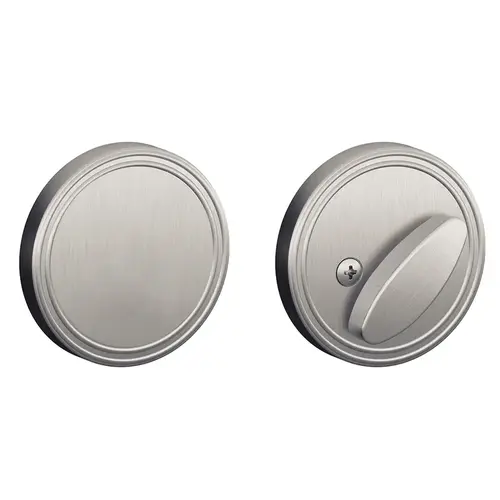

Schlage J Dexter Series JD81630 One Sided Deadbolt With Plate Satin Stainless Steel Finish with Adjustable Latch and Radius Strike

Item #: JD81630 by Dexter by Schlage

UPC #: 043156893447

See reviewsSee reviews
In Stock

$30.40

/each
SAVE UP TO 3.04

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • One-sided Deadbolt Lock with Exterior Plate - Unlocked by Inside Thumbturn
  • ANSI/BHMA A156.36 Grade 3
  • Reversible Handing
  • Includes All Mounting Hardware for Easy Installation
  • Lifetime Mechanical & 5 Year Finish Warranty

Finish

Satin Stainless Steel

Function

One Sided with Plate

Series

J Series Deadbolt

Handing

Reversible

Strike

Radius Deadbolt Strike

Backset

2-3/8" or 2-3/4"

Grade

ANSI/BHMA Grade 3

Style

Round

Application

Residential

Warranty

Lifetime Mechanical and 5 yr Finish

Color Code

630/US32D

Door Thickness

1-3/8" to 1-3/4"

Finish Description

Satin Stainless Steel

Product Height

2.8 Inches

Product Length

3.31 Inches

ADA Compliant

No

Finish Family

Stainless Steel

Included Components

Deadbolt; Roses; Latch; Strike; Mounting Hardware

Rose/Escutcheon Trim

Round Rose

Door Cross Bore

2.125 Inch

Product Material

Zinc

Standards

ANSI/BHMA A156.36-2010

Function Family

Blank With Thumbturn Deadbolt

Features

Deadbolt Thrown or Retracted From Interior Side Only; Dual Option Latches

Product Type

Auxiliary Lock

Manufacturer Parent

Allegion

Door Edge Bore

1 Inch

Box Dimensions (L x W x H)

2.8x3.11x3.31

Sub-Series

RL_Deadbolts_Schlage_Residential_19

Product Overview
J SeriesDeadbolts

With premium metal construction and plated keyways, Schlage mechanical and electronic deadbolts are made with durability in mind. Combine our wide range of unique finish and style options with our easy one-tool installation and you can give your door a stylish makeover in minutes.

Available Functions: JD60 - Single Cylinder Deadbolt Lock:
  • Deadbolt thrown or retracted by key from outside or by inside turn unit
  • Bolt automatically deadlocks when fully thrown
JD80 - One Sided Deadbolt:
  • Deadbolt thrown or retracted from interior side only
JD81 - One-sided Deadbolt Lock with Exterior Plate:
  • Deadbolt thrown or retracted from interior side only
  • *Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Latches & Strikes: Latches:
  • 16-068 - Dual Option (Round, Drive-in) - Standard
Strikes:
  • 10-267 - One Radius Deadbolt Full Lip Strike (10-102)
    & One Radius Deadbolt Strike (10-103) - Standard
  • 10-099 - Square Strike Plate & Strike Frame Reinforcer
Specifications: Certification:
  • ANSI/BHMA A156.36-2010 Commercial Grade 3
Deadbolt Latch:
  • Dual Option: 1" x 2 1/4", 1/4" round faceplate, drive-in latch, 1" housing diameter, 1" throw
Strike:
  • 1" x 2 1/4" round corner and radius corner, full lip
Backset:
  • Adjustable for 2 3/8" or 2 3/4"
Cylinder:
  • 5-pin, C keyway, keyed alike (KA4)
Door Range:
  • 1 3/8" - 1 3/4"
Keys:
  • Two brass cut keys per lock, 5-pin, C section
Finishes: 605:
  • Bright Brass (US3)
609:
  • Antique Brass (US5)
619:
  • Satin Nickel (US15)
620:
  • Antique Pewter (US15A)
622:
  • Matte Black (US19)
625:
  • Bright Chrome (US26)
626:
  • Satin Chrome (US26D)
630:
  • Satin Stainless Steel (US32D)
716:
  • Aged Bronze
  • *Non-standard finishes are not available
  • Full-color swatch examples available on inside Deadbolts tab
