The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. .
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

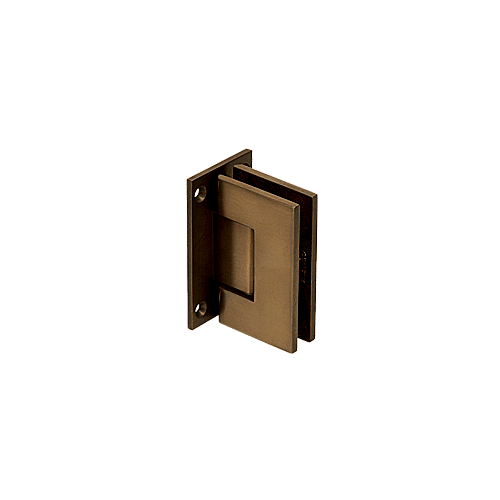

CRL GEN3370RB Oil Rubbed Bronze Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge
Item #: GEN3370RB by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Adjustable to Any Angle Up to 90 Degrees without Removing Door
- Adjustable Wall Mount Full Back Plate
- Three Year Warranty
Shipping Weight
2 lb (907g)
Height
3-1/2
Width
2-3/16
Finish
Oil Rubbed Bronze
Back Plate
Full
Glazing Thickness
5/16 To 1/2
Edge Profile
Square
Adjustable
Yes
Finish/Color
Oil Rubbed Bronze
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges (Inches)
28
Maximum Door Width - 3 Hinges (Inches)
32
Maximum Door Weight - 3 Hinges (Pounds)
120
Maximum Door Weight - 2 Hinges (Pounds)
80
Mounting Type
Wall Mount
Material
Brass
Mounting Style
Wall mount
Height (Inches)
3-1/2
Max Dr Weight - 3 Hinges (Lbs)
120
Max Dr Weight - 2 Hinges (Lbs)
80
Width (Inches)
2-3/16
Max Dr Width - 3 Hinges (Inch)
32
Max Dr Width - 2 Hinges (Inch)
28
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. .
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
.
