CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps tighten using nylon tipped Allen screws).
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

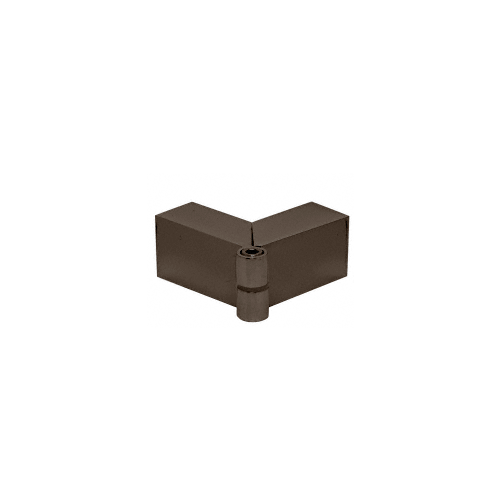

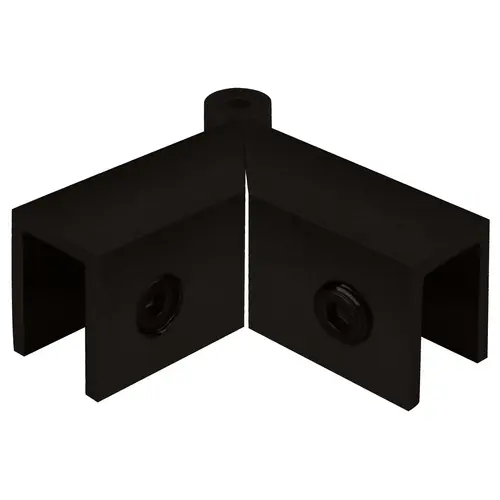

CRL S0GC910RB Oil Rubbed Bronze Adjustable "Sleeve Over" Glass Clamp
Item #: S0GC910RB by CR Laurence
1 1
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Adjustable From 90 to 180 Degrees
- Assists with Shear Forces
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Holds Glass Panels in Position While Sealant Cures
- Solid Brass
Height
1" (25.4 mm)
Width Per Leg
2-1/8" (54 mm)
Finish
Oil Rubbed Bronze
Mounting Type
Glass To Glass
Glazing Thickness
5/16 To 1/2
Material
Brass
Adjustable
Yes
Finish/Color
Oil Rubbed Bronze
Mounting Style
Glass To Glass
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps tighten using nylon tipped Allen screws).
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
.
