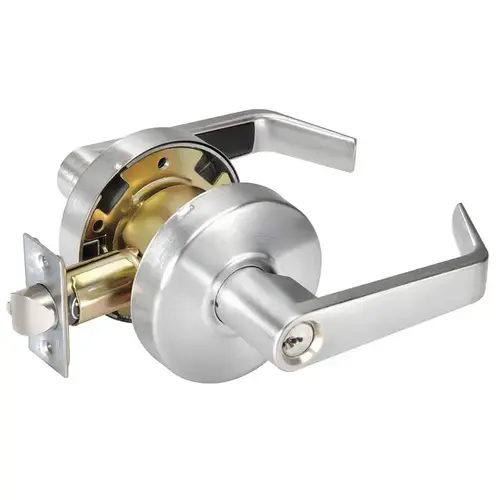

Yale Commercial AU4607LN 626 Grade 2 Entry Cylindrical Lock, Augusta Lever, Conventional, Satin Chrome
Item #: AU4607LN 626 by Yale
UPC #: 840067698969
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ANSI / BHMA A156.2 Grade 2
- ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
- Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
- Universal Front for Both Flat and Beveled Door Edges
- Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
- Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
- Non Handed
- Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
- Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
- Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
- Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.
Finish
Satin Chrome
Function
07LN-Entry
Series
4600LN Series
Design
Augusta
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Backset
2-3/4 Inch
Lever/Knob Design
AU - Augusta
Strike Height
4-7/8"
Keyway
Yale PARA (E1R, 8)
Base Material
Brass or Bronze
Rose/Escutcheon Design
3-1/2 In. Diameter
Strike Type
Curved Lip
Color Code
626/US26D
Bolt Protection
1/2"
Keying
Keyed Different
Screws
Combination
Package Qty
1
Lock Face Size
2-1/4" x 1-1/8"
Cylinder Type
Conventional Cylinder
Latch Backset Dim
2-3/4"
Strike Width
1-1/4"
Key(s)
Cut
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}
Fire Rated
3 Hours {A}
Grade
ANSI/BHMA Grade 2
Hand
Not Handed
ANSI Function
F109
Latch Type
Deadlatch
Latch Number
MCD234
Package Volume
0
Strike Number
497
Thickness
1-3/8" - 1-3/4"
Finish Description
Satin Chrome
Keyblank Grouping
YALE-PARA-6-1
Lever Style
AU-Augusta
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Projection
2.5000
Lever Length
5.0000
Door Thickness
1 3/8" to 1 3/4"
ADA Approved
False
Keying Charges
CCAM
Application
Commercial Applications
Warranty
3 year mechanical
Handle Type
Lever
Rose Diameter
3-3/8 Inch
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Cylinder Type Used
Conventional
Function Description
Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Function Family
Entry/Entrance/Office
Latch bolt size
2-3/4 Inch
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Cast Zinc (Lever); Brass (Rose)
Features
Versatile; Economical; Secure; Strong and Reliable
Strike Size
4-7/8" x 1-1/4"
Cylinder Material
Brass
Manufacturer Parent
Assa Abloy
Lever Length-Inches
5 Inch
Knob/Lever Size
5 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
AU-4607LN-626
Pack Size
1
