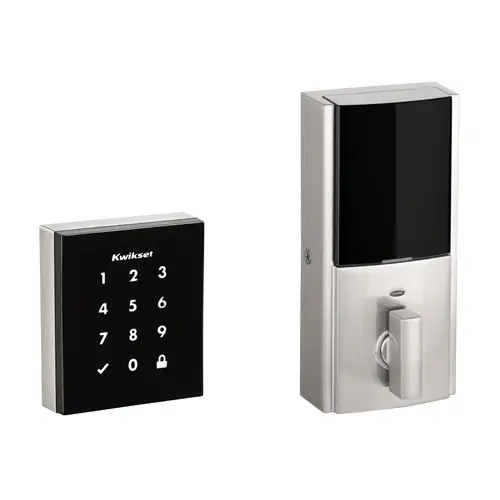

Kwikset 953OBN-15 Obsidian Touchscreen Electronic Deadbolt, Satin Nickel
Item #: 953OBN-15 by Kwikset
UPC #: 883351618762
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- The Obsidian Is An Extremely Slim, Modern, Key-Free Electronic Deadbolt Designed For Homeowners Who Love Contemporary Design. It Is The Lowest Profile Electronic Lock In The Industry, With A Dark, Sleek Interface That Pushes The Boundaries Of Design In Th
- Securescreen™ - Patented Technology To Help Prevent Code Detection From Fingerprints On The Touchscreen
- Keyless Entry - No More Keys To Hide And No Keyway To Pick Or Bump
- Code Alarm - Alarm Sounds After 3 Incorrect Codes Are Consecutively Entered And The Screen Temporarily Locks Out
- User Codes - Up To 16 Customizable User Codes For Increased Security
- Mastercode - Improved User Access Code Management
- Customized Automatic Door Locking After 30 Seconds For Peace Of Mind
- Tamper-Resistant Interior Cover - Prevent Unauthorized Access To Programming Buttons
Backset
2-3/8 Inch or 2-3/4 Inch
Handing
Reversible
Function
953-Obsidian Deadbolt
Door Thickness
1-3/8" to 2"
Product Class
Residential
Theme
Modern
Latch Faceplate
Round Corner
ADA
No
BHMA Certification
Grade 2
Cross Bore
1-1/2", 2-1/8"
Edge Bore
1"
Fire Rated
Yes
Interior Projection
2.125
Interior Width
2-11/16"
Lit Keypad
Yes
Manufacturer Warranty
Limited Lifetime Mechanical, Limited Lifetime Finish, 1 Year Electronics
Number of Codes
1-6
Remote Access
No
SmartKey
No
Smartphone Enabled
No
Usage Monitoring
No
exterior projection
0.8125
auto-lock capable
No
input type
Touchscreen
Interior Height
5-3/4"
Exterior Height
3-7/32"
Exterior Width
2-25/32"
Series
953 Series
Finish
Satin Nickel
Grade
ANSI/BHMA Grade 2
Keyway
Kwikset KW1
Cylinder Type
Conventional Cylinder
Finish Description
Satin Nickel
Keyblank Grouping
KWIK-KW1-5-1
Rose/Escutcheon Trim
Square
Product Type
Touchscreen Lock
Projection
0.8125
Product Height
3.2187
Product Length
2.7812
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
3.5000
Box Width
5.3800
Box Height
9.8800
Interior Length
2-3/32"
Manufacturer Parent
Spectrum
Automatic Door Locking
Yes
Battery Included
No
Faceplate Dimension
1" x 2-1/4"
Hand
Reversible
Sub-Series
RL_Electronic_Locks_kwikset_14
Exterior Length
13/16"
Keyed or Keyless
Keyless
ADA Compliant
No
Strike
RCS-Round Corner Strike
Box Dimensions (L x W x H)
3.50x5.38x9.88
Alarm Feature
Yes
Standards
BHMA Grade 2
Battery Type
4 AA
Features
One-Touch Locking Dedicated Button To Easily Lock Your Door; Audible Beep And Visual Flash When Batteries Are Low
Color Code
619/US15
Warranty
1 Year
Included Components
Latch; Interior Assembly; Exterior Touchscreen; Strike; Adapter Ring; Mounting Plate; Fasteners
Finish Family
Satin Nickel
