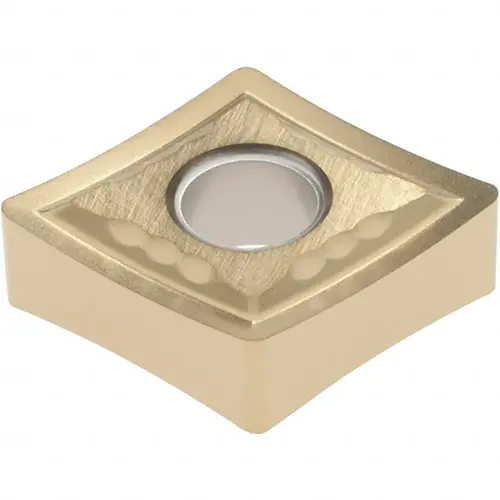

Turning Insert: CNGG432FNZP ZM3, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

NTK 7901647-XCP10Click To Copy Turning Insert: CNGG432FNZP ZM3, Solid Carbide - pack of 10

Item #: 7901647-XCP10 by NTK

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$381.31

/package
SAVE UP TO 38.13

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNGG

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

7901647

Material Grade

Micrograin

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1693

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Non-Ferrous Metal

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

ZP

Secondary Workpiece Material Code

N

Insert Style

CNGG

Insert Size Code

432

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

ZM3

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

TiN

Iso Code

CNGG 120408 FNZP

Product Overview
Turning Insert: CNGG432FNZP ZM3, Solid Carbide Coated, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CNGG
