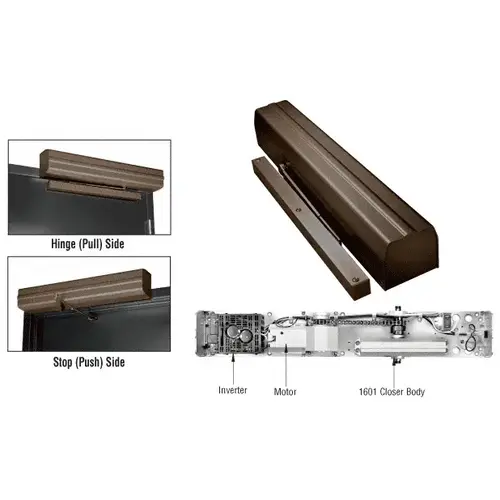

Norton 's 5700 Series introduces a new generation of power door operators. The patented design of LEO is based on ease and simplicity. LEO installs in minutes rather than hours, and consists of three basic components: Inverter, motor, and Norton's 1601 Closer Body.
What separates LEO from other operators is its ability to function as a standard door closer. When the door is opened manually, there is little resistance, and the drive train and motor are not engaged. The 1601 Closer, not the motor, controls the closing cycle. Since the door closer does not back-drive the motor during the closing cycle, there is no loss of closer efficiency.
In the event of a power outage, the door can be manually opened and will close via the door closer's spring force.
LEO is listed with UL and ANSI/BHMA A156.19, and meets the requirements of A.D.A. A156.4. It is ideal for offices, retirement facilities, schools, churches, and any location where extra features are not required and noise may be a concern. LEO can be activated via wall switch, radio frequency device or motion sensor, and is available for both push and pull side applications. Based on its dual functionality, ease of use and quiet operation, LEO offers the customer a unique choice.
NOTE: This product is a low energy power operator intended for A.D.A. assist openings only. It is not intended to be used for applications requiring a full time automatic operator.
SPECIFICATIONS:
Power Input: 120V AC, 60Hz
Current Draw: .6A
Relay Output: DPDT-N.O./N.C. (jumper)
External On/Off Switch
Adjustable Hydraulic Backcheck
Adjustable Hold Open: 0 to 30 Seconds
Warranty: 2 Year Limited
Finish: Sprayed Combination of Waterborne Acrylic and Polyester Powder Coat
Dimensions:
Body with Cover: 29" (737 mm) x 5-1/4" (133 mm)
Body Projection: 4-5/8" (117 mm)
Track Assembly: 23" (584 mm)
NOTE: Contact DK Hardware Sales for use on doors exceeding 250 lbs. (113 kg).
NOTE: Door Switches and Sensors are not included with 5700 Series Door Operators. These must be ordered separately.
Product Warning:
This product is a low energy operator intended for ADA assist openings only. It is not intended to be used for full time automatic opener applications.
This operator can be wired to work with electric strikes or magnetic locks. The strikes or locks would need their own separate power supply.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
Norton LE05741DUClick To Copy Dark Bronze 5700 Series - LEO Low Energy Power Door Operator
Item #: LE05741DU by Norton
See reviewsSee reviews
In Stock
$2,780.60
/eachSAVE UP TO 278.06
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 27 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Complies with A.D.A. Accessibility Guidelines
- Easy-to-Install and Set Up
- Meets ANSI/BHMA A156.19 and A.D.A. A156.4
- Non-Handed
- Retains Proper Closing Force While Providing A.D.A. Mandated Opening Force
- UL Listed
Body With Cover
29 x 5-1/4
Body Projection
4-5/8
Track Assembly
23
Brand
Norton LEO
Finish
Dark Bronze
UL Listed
Yes
Handing
Non Handed
Power Input
120V AC, 60Hz
Type
Low Energy Power Door Operator
Components
Inverter,Motor, And Norton's 1601 Closer Body.
Finish/Color
Dark Bronze
Certification
ANSI/BHMA A156.19 and A.D.A.
Product Overview
Norton 's 5700 Series introduces a new generation of power door operators. The patented design of LEO is based on ease and simplicity. LEO installs in minutes rather than hours, and consists of three basic components: Inverter, motor, and Norton's 1601 Closer Body.
What separates LEO from other operators is its ability to function as a standard door closer. When the door is opened manually, there is little resistance, and the drive train and motor are not engaged. The 1601 Closer, not the motor, controls the closing cycle. Since the door closer does not back-drive the motor during the closing cycle, there is no loss of closer efficiency.
In the event of a power outage, the door can be manually opened and will close via the door closer's spring force.
LEO is listed with UL and ANSI/BHMA A156.19, and meets the requirements of A.D.A. A156.4. It is ideal for offices, retirement facilities, schools, churches, and any location where extra features are not required and noise may be a concern. LEO can be activated via wall switch, radio frequency device or motion sensor, and is available for both push and pull side applications. Based on its dual functionality, ease of use and quiet operation, LEO offers the customer a unique choice.
NOTE: This product is a low energy power operator intended for A.D.A. assist openings only. It is not intended to be used for applications requiring a full time automatic operator.
SPECIFICATIONS:
Power Input: 120V AC, 60Hz
Current Draw: .6A
Relay Output: DPDT-N.O./N.C. (jumper)
External On/Off Switch
Adjustable Hydraulic Backcheck
Adjustable Hold Open: 0 to 30 Seconds
Warranty: 2 Year Limited
Finish: Sprayed Combination of Waterborne Acrylic and Polyester Powder Coat
Dimensions:
Body with Cover: 29" (737 mm) x 5-1/4" (133 mm)
Body Projection: 4-5/8" (117 mm)
Track Assembly: 23" (584 mm)
NOTE: Contact DK Hardware Sales for use on doors exceeding 250 lbs. (113 kg).
NOTE: Door Switches and Sensors are not included with 5700 Series Door Operators. These must be ordered separately.
Product Warning:
This product is a low energy operator intended for ADA assist openings only. It is not intended to be used for full time automatic opener applications.
This operator can be wired to work with electric strikes or magnetic locks. The strikes or locks would need their own separate power supply.
