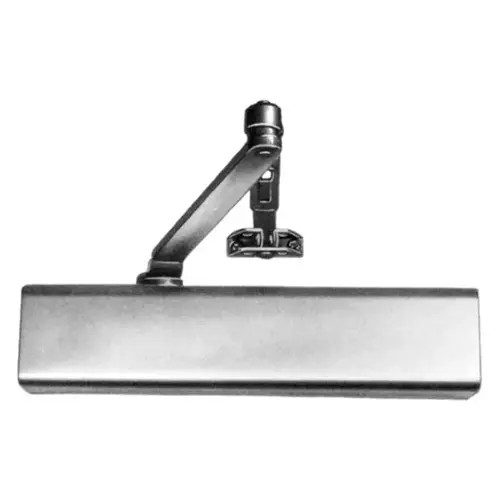

Norton 8501HDA-689-SNB134-38 8000 Series Surface Door Closer with Delayed Action Aluminum Painted
Item #: 8501HDA-689-SNB134-38 by Norton
See reviewsSee reviews
HURRY! Low in stock
$401.17
/eachSAVE UP TO 40.12
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Aluminum Painted
Mounting Type
Push or Pull Side
Grade
ANSI/BHMA Grade 1
Application
Offices; Banks; Retail Malls; Hotels; Health Care; Clinics
Hand
Non-Handed
Handing
Non-Handed
Warranty
30 Year Limited Warranty
Spring Size
1-6
Function
Tri-Packed Hold Open Arm
Door Thickness
1-3/4 inch
Mount
Push or Pull Side
Door Size
32" to 54" (Interior); 30" to 48" (Exterior)
Maximum Door Opening
180°
Finish Description
Aluminum Painted
Product Height
2-7/8 Inch
Product Length
13 Inch
Product Width
2-1/8 Inch
ADA Compliant
YES
Included Components
Sex Nuts and Bolts for 1-3/4" Thick Door
Product Material
Cast Aluminum
Closer Cover
Full Plastic Cover
Standards
Grade 1 - ANSI/BHMA A156.4; UL listed; UL10c
Closer Arm Extension
2-1/8 Inch
Closer Arm Type
Hold Open Arm
Closer Fluid Temperature Range
Extremely High to as Low as -40° F
Closer Fluid
NorGlide (R) Closer Fluid
Closer Piston Diameter
1-1/4 Inch
Closer Pinion Diameter
5/8 Inch
Mounting Hole Size
3/4" x 12"
Templating
Full Size Template
Fastener Type
Self Drilling Screws
Features
Exceeds 25 Million Cycles; Rack and Pinion Design; Staked Valves
Product Type
Door Closer/Holder/Stop
Series
8501 Series
Finish Family
Aluminum
Function Family
Hold Open Door Closer
Manufacturer Parent
Assa Abloy
Closer Hold-Open
true
Sub-Series
DC_Surface Mounted Closers_norton_42
Product Overview
8000 SeriesArchitectural Door Closer
Multi-sized surface closer offering a complete range of arms and a sleek, minimal design suited for moderate- to hightraffic, architectural openings.
Features:- Exceeds 25 million cycles
- Adjustable spring sizes 1 through 6
- Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
- Non-handed
- Staked valves
- Cast aluminum closer body
- Rack and pinion design
- 1-1/4" (32mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- 2-1/8" (54mm) projection (standard covers)
- All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
- Full size template
- Standard, separate and independent, latch, sweep and back check intensity valves
- Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)
- Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
- Slide Tracks: push or pull side mounting
- 25-year limited warranty
- Lead lined metal cover - suffix MLL
- Metal, architectural plastic or architectural metal covers (8501 only)
- Delayed action
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- 8301 and 8501 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A)and ANSI standard A117.1
- This product is manufactured in an ISO 9001, ISO 14001 facility
- Door Closers for Low Opening Force Applications:
- Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
