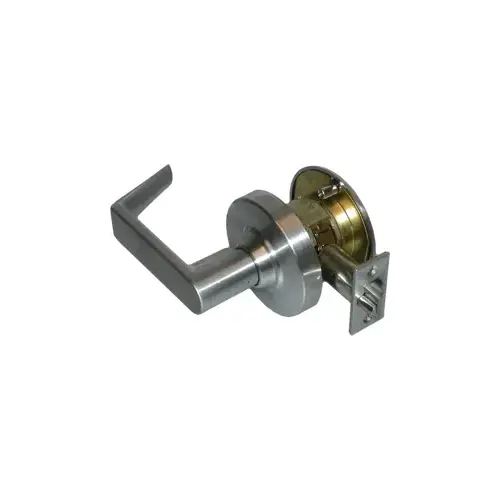

Schlage Commercial ND25D RHO 626 Grade 1 Exit Lock, Rhodes Lever, Non-Keyed, Satin Chrome
Item #: ND25D RHO 626 by Schlage Commercial
UPC #: 043156568871
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Handing: All ND-Series lever locksets are non-handed.
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Grade
ANSI/BHMA Grade 1
Thickness
1-5/8" - 2-1/8"
Hand
Not Handed
Color
Satin Chrome
Color Code
626/US26D
Case Length
16.375"
Function
25-Exit, Blank Plate x Lever
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75"
Package Length
9.5"
Package Volume
372.28125
Package Width
8.25"
ANSI Function
F89 - Exit
Bolt Protection
1/2"
Case Height
10"
Case Volume
2394.84375
Case Width
14.625"
Latch Backset Dim
2-3/4 In.
Latch Number
13-247
Latch Type
Deadlatch
Lever/Knob Design
RHO - Rhodes
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Rose/Escutcheon Design
3-7/16 In. Diameter
Screws
Combination
Special Marks
Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
10-025
Strike Type
ANSI Strike
Strike Width
1-1/4"
Base Material
Brass or Bronze
Handing
Right Hand
Finish
Satin Chrome
Backset
2-3/4 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Finish Description
Satin Chrome
Lever Style
RHO-Rhodes
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Series
ND Series
Projection
2.9375
Lever Length
4.5625
Door Thickness
1 5/8" - 2 1/8"
Bore Size
2.1250
ADA Approved
False
Warranty
10 year mechanical
Aluminium Bottle Contents
Swinging
ProductType
Manual
Application
Healthcare; Education; Government; Office; Retail; Other Commercial Applications
Handle Type
Lever
Rose Diameter
3-7/16 Inch
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
1-1/4" x 4-7/8"
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Front Size
1-1/8" x 2-1/4"
Function Family
Exit Lock
Strike Lip
1-3/16 Inch
Product Projection
2-15/16 Inch
Trim Material
Pressure Cast Zinc (Lever)
Features
Heavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Manufacturer Parent
Allegion
Lever Length-Inches
4.5625 Inch
Latch Corner
Square
Knob/Lever Size
4-9/16 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_schlage_commercial_235
Cylinder Included
No
Cylinder Type
None
Alternate Part Number-1
133230
Latch Bolt Type
Deadlatch
Knob/Lever Design
Rhodes
Rose/Escutcheon Size
3-7/16"
Latch Bolt Faceplate Size
2-1/4" x 1-1/8"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/4"
Latch Bolt Face Type
Square Corner
Latch Bolt Throw
1/2"
Rose/Escutcheon Style
Rose
Door Thickness Max
2"
Knob/Lever Style
Lever
Pack Size
1
Product Overview
ND SeriesCylindrical Locks
ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles.
All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.
Product Specifications: Material:- Modular design of zinc and steel components plated for corrosion protection
- Standard: 1 5/8" to 2 1/8"
- Non-Handed
- Standard: Nine designs, pressure cast zinc, plated to match product finish specification
- Wrought brass, bronze, or zinc, plated to match product finish specification
- 10 available
- (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)
- Standard: 2 3/4"
- Standard : 1 1/8" x 2 1/4"
- Standard : 1/2" throw via Oil Impregnated Stainless Steel
- Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"
- Standard: 3 Schlage
- (KIL or FSIC or SFIC)
- Standard: 6-Pin Patented Everest 29
- 10 years mechanical, 1 year wired electrified
- All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices
- Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
- All locks 3 hour A label single firedoor 4'0" x 10'0"
- pair doors 3 hour firedoor 8'0" x 8'0" with 3/4" latch option
- pair doors 90 minute fire 8'0" x 10'0" with 3/4" latch option
- All levers with a return to door of 1/2"
- (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)
- Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
- Meets FF-H-106C Series 161
