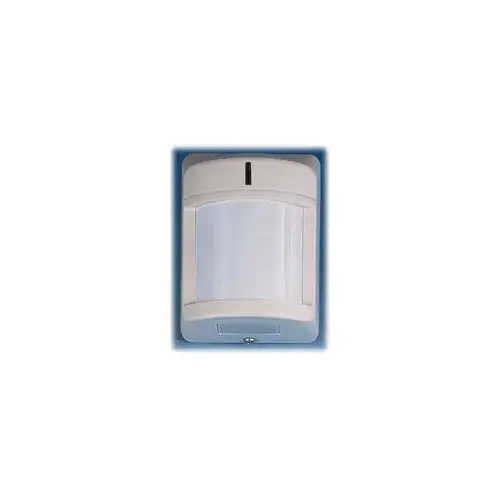

Napco Security Alarm PIR1680PT Motion Sensor w/Temp Alert

Item #: PIR1680PT by Napco Security Alarm

See reviews See reviews

$41.11

/each
SAVE UP TO 4.11

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

127630

Style

Motion Sensor

Part Type

Detectors

NAPCOPIR w/Smart False Alarm Rejection

Animal immunity & built-in temperature sensors

Advanced PIR1680 Series Passive Infrared Motion Detectors exemplify NAPCO sensor technology’s innovation, increasing dependability without compromising intruder "catch" sensitivity.

For applications where animal/pet immunity is key, the PIR1680PT supports 65lb. (29kg) pet protection within its 45' (13.7m) range. Or, the original model PIR1680, has a 50' (15.2m) range and offers nominal 20lb. (9kg) animal/rodent immunity. Outstanding false alarm rejection in both models is made possible with their advanced microprocessor that has been embedded with a library of valid and false alarm signal signatures—enabling the PIR to differentiate intruders from animals and other traditional false alarm sources.

In addition to proven intruder-detection circuitry, these units also feature a built-in temperature sensor – at no additional charge—so you can provide traditional security, as well as climate security from heat and/or freeze damages, when HVAC systems fail, before pipes burst or décor, pets or perishables are ravaged by heat extremes, otherwise left unchecked.

  • Microprocessor: 2K ROM with A-D Converter
  • Operating temperature*: -10 to +50 degrees C (14° to 122° F)
  • Freeze damage alert: 40°F (4°C)
  • Heat damage alert: 90°F (32°C)
  • Mounting: Wall or corner, 12' (3.6m) max.; For pet/animal applications 7' (2.1m) is recommended.
  • Output relay: Form A; normally closed
  • Relay time: Approx. 3 seconds
  • Alarm Relay: 100mA, 24Vdc with internal 10 ohm current limiting resistor
  • Multi-mode Trouble Output (Open collector)
  • Self-Test Interval: 11 - 16 hrs.
  • Power supply requirements: Filtered 10.6 to 16VDC nominal with battery backup form the control panel.
  • Current drain: 28mA (idle/alarm) at 12VDC (nominal)
  • Dimensions: 3.3"H x 2.5"W x 1.9"D (8.4 x 6.4 x 4.8 cm) (HxWxD)
  • Shipping weight: 5 oz (142 gm)
