CRLMulti-Purpose Glass Storage Systems are designed for the upright storage of glass cases, glass (stoce) packs and loose lites. All components are protected with a Powder Coated Finish for durability.
Posts are available in three stock lengths: 60" (1.52 m), 80" (2.03 m), and 102" (2.59 m). 2" (51 mm) square steel posts are matched to precision cut holes in the base rails spaced 4" (102 mm) apart for maximum adjustability. A heavy steel plate is fabricated with the same hole pattern and is welded inside the rail 1" (25 mm) up from the bottom to provide rigid, plumb alignment of all posts.
Base Rails can be butted together in 60" (1.52 m) increments to form any length system required, and are predrilled with 1/2" (12.7 mm) holes for anchoring to the floor. Base Rails are kept in alignment when butted together with a unique 1" (25 mm) square slip-joint tube that ensures a straight line is maintained.
Low friction EZ Slide option with Center Rail provides easy handling and edge protection for loose lites and glass (stoce) packs. Standard Case Storage Packages are intended for wooden case storage only, and do not include Center Rail or EZ Slide materials. EZ Slide Glass Pack Packages can be used for wooden cases, glass packs or loose lites. All products ship F.O.B. Woodstock, Illinois.
COMPONENTS: (4) Outside Rails; (2) Center Rails; (10) 60" Posts; and (10) 80" Posts.
Dimensions:
Rail Size: 11" x 5.5" x 60"
Center Rail Size: 4.5" (7.25" with flange) x 5.75"
Post: 2" x 60"
Product Warning:
Rails designed with slots to hold 2 x 4 s which protect the slab edges and the finish on the rails (2 x 4's not included). Optional Easy Slide System (made of low friction material) can be mounted to the 2 x 4 s for extra protection
Center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the rack
Complete with 11" connector tube for butting rails together in a straight line for desired length
Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom
2" square tube posts and 2" square rubber post caps to separate glass
Heavy-duty powder coated finish
Minimum of 2-degree angle when dropping stone in between posts
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

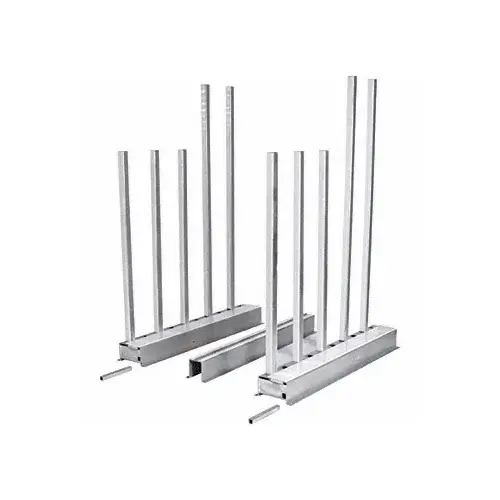

CRL 2005435 Multi-Purpose EZ Slide Glass Pack (Stoce) Package - 596 Lb. (270 kg) Weight
Item #: 2005435 by CR Laurence
See reviewsSee reviews
In Stock
$6,160.00
/eachSAVE UP TO 616.00
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Fixed Post System for Storage of Wood Cases, Glass Packs, and Loose Lites
- Rated Up to 4,000 Lb. (1814 kg) Between Posts
- 9 Stoce Package
- Customize for Your Space Using Individual Components or Choose From Selection of Storage
F.O.B
Woodstock, Il.
Shipping Weight
596 lb (270.34kg)
Height
60,80,120
Product Overview
CRLMulti-Purpose Glass Storage Systems are designed for the upright storage of glass cases, glass (stoce) packs and loose lites. All components are protected with a Powder Coated Finish for durability.
Posts are available in three stock lengths: 60" (1.52 m), 80" (2.03 m), and 102" (2.59 m). 2" (51 mm) square steel posts are matched to precision cut holes in the base rails spaced 4" (102 mm) apart for maximum adjustability. A heavy steel plate is fabricated with the same hole pattern and is welded inside the rail 1" (25 mm) up from the bottom to provide rigid, plumb alignment of all posts.
Base Rails can be butted together in 60" (1.52 m) increments to form any length system required, and are predrilled with 1/2" (12.7 mm) holes for anchoring to the floor. Base Rails are kept in alignment when butted together with a unique 1" (25 mm) square slip-joint tube that ensures a straight line is maintained.
Low friction EZ Slide option with Center Rail provides easy handling and edge protection for loose lites and glass (stoce) packs. Standard Case Storage Packages are intended for wooden case storage only, and do not include Center Rail or EZ Slide materials. EZ Slide Glass Pack Packages can be used for wooden cases, glass packs or loose lites. All products ship F.O.B. Woodstock, Illinois.
COMPONENTS: (4) Outside Rails; (2) Center Rails; (10) 60" Posts; and (10) 80" Posts.
Dimensions:
Rail Size: 11" x 5.5" x 60"
Center Rail Size: 4.5" (7.25" with flange) x 5.75"
Post: 2" x 60"
Product Warning:
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
