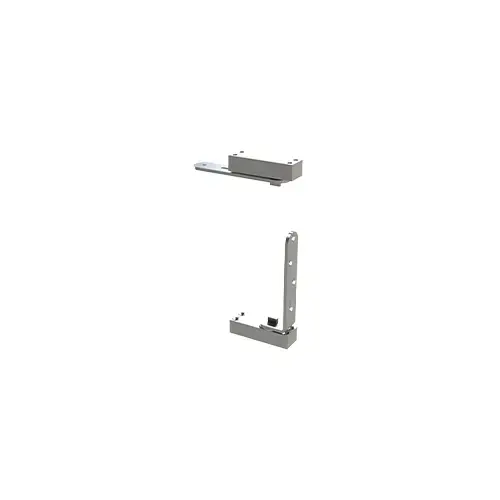

Hager 001278 510 Mortise Application - Hospital Set Wood Floor - Less Release Pivot Satin Chrome Finish
Item #: 001278 by Hager
UPC #: 041359012788
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Plastic Closer Body Cover
- Finishes: Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
- High Impact, Non-Corrosive Material
- Antimicrobial: Protection Hager offers an option of antimicrobial protection for the full line of stainless steel architectural grade butt hinges to prevent growth of bacteria and fungi.
- OPERATION: Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance dete
- Cover Projects 2-1/4" From Door Face
- Secured By Two Machine Screws
- For 5100 Series
Finish
Satin Chrome
Series
Hager Commercial Hinge Series
Color Code
626/US26D
Hinge Type
Pivot, Center Hung Set
Package Qty
1
Base Material
Brass or Bronze
Maximum Door Height
7' (2134 mm)
Maximum Door Weight
135 lbs.
Fasteners
Plastic cinch anchors
Maximum Door Length
3'6" (1067 mm)
Notes
- Includes head and floor pivots only - use with door release #610.
- For use with square edge doors on hinge side.
- Wood or metal doors up to 135 lbs.
- Wood or metal frames.
HINGE FINISHES - COMMERCIAL
US26D - SATIN CHROMIUM
Dimension
12-5/16" x 2-1/4" x 3-11/16
Material
Steel
Manufacturer Warranty
Limited Lifetime Warranty and 1 Year Finish Warranty
Hazardous Material
No
Finish code
US26D
No of inners
1
Product Overview
Mortise Application in Wood Floors Head and Floor Pivots (less release)
Applications:
Camtrol Double Acting - Hospital Set - Rescue Hardware - Mortise Application in Wood Floors - Head and Floor Pivot (less release)
Notes:
Certifications:
ANSI A5702
Features:
Self Centering, centers door at 30°- Opens 90° in each direction
Finishes:
US26D
Applications:
Camtrol Double Acting - Hospital Set - Rescue Hardware - Mortise Application in Wood Floors - Head and Floor Pivot (less release)
Notes:
- Includes head and floor pivots only - use with door release #610.
- For use with square edge doors on hinge side.
- Wood or metal doors up to 135 lbs.
- Wood or metal frames.
Certifications:
ANSI A5702
Features:
Self Centering, centers door at 30°- Opens 90° in each direction
Finishes:
US26D
