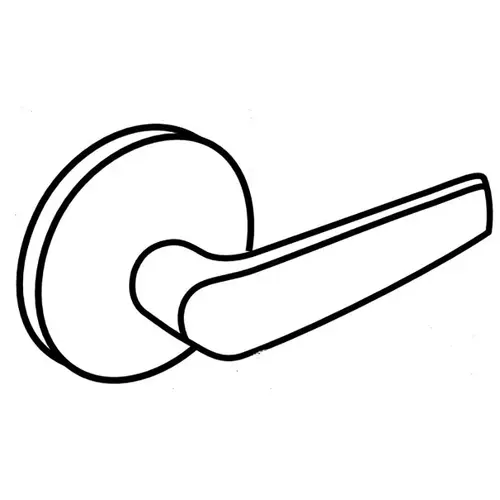

Corbin Russwin ML2048 CSA 613 ML2048 Mortise Entrance Lever Lockset, Oil Rubbed Dark Bronze

Item #: ML2048 CSA 613 by Corbin Russwin

See reviewsSee reviews
In Stock

$1,016.58

/each
SAVE UP TO 101.66

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lock case;
  • Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available
  • Backset 2-3/4" (70mm).
  • Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance
  • Front Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
  • Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
  • Latchbolt 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
  • Keys Two nickel silver standard.
  • Federal Meets FF-H-106C.
  • Environmental Product Declaration (EPD) certified

Thickness

1-3/4"

Strike Number

236L72018

Color

Dark Oxidized Satin Bronze Oil Rubbed

Function

48-Entrance/Apartment

ANSI Function

F08/F10

Hand

Field Reversible

Grade

ANSI/BHMA Grade 1

Fire Rated

3 Hours {A}

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines

Key(s)

Blank

Strike Width

1-1/4"

ADA Compliance

Yes

Cylinder Type

Conventional

Lock Face Size

8" x 1-1/4"

Application

Offices, Schools, Hospitals, Hotels

Package Qty

1

Screws

Combination

Keying

0 Bitted

Bolt Protection

3/4" Latchbolt, 1" Deadbolt

Color Code

613/US10B

Strike Type

Straight Lip

Origin

USA

BAA Qualified

Yes

Rose/Escutcheon Design

A - Rose

Base Material

Bronze

Keyway

Corbin Russwin L4

Strike Height

4-7/8"

Lever/Knob Design

CS - Citation

Finish

Oil Rubbed Dark Bronze

Finish Description

Oil Rubbed Dark Bronze

Keyblank Grouping

CRRS-L4-6-1

Lever Style

CS-Citation

Product Type

Mortise Lock

Rose/Escutcheon Trim

A-Wrought Rose

Series

ML2000 Series

Keying Charges

CCAM

Backset

2-3/4 Inch

Warranty

10 year limited

Handle Type

Lever

Door Thickness

1-3/4 inch

Latch Throw

3/4 Inch

Lip to Center

1-1/8 Inch

Deadbolt Throw

1 Inch

ADA Compliant

YES

Finish Family

Dark Bronze

Included Components

(2) Keys

Keying Type

Keyed Random

Deadbolt Size

19/32" x 1-1/4"

Deadbolt Type

One-Piece Stainless Steel

Hub Material

Steel

Standards

ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1, A117.1 Accessibility Code; UL Listed

Front Material

Steel

Case Dimensions

5-7/8" x 4" x 15/16"

Front Size

8" x 1-1/4" x 3/32"

Function Family

Entrance or Apartment

Product Projection

2-5/8 Inch

Spacing

3-5/8" (Knob/Lever to Cylinder); 2-7/16" (Knob/Lever to Thumbturn)

Rose/Escutcheon Width

2-1/4 Inch

Rose/Escutcheon Length

2-1/4 Inch

Features

Provides Life Safety and Security in a Single Door Prep, Saving the Additional Cost of a Deadlock; Latchbolt by Key Outside or by Grip Either Side, Unless Outside Grip Is Locked by Toggle-Action Stop

Strike Size

4-7/8" x 1-1/4"

Hub Size

5/16 Inch

Manufacturer Parent

Assa Abloy

Latchbolt Size

5/8" x 1"

Knob/Lever Size

4-3/8 Inch

Latchbolt Type

2-Piece Mechanical With Anti-Friction Insert

Lever Style Family

Straight Lever

Sub-Series

CL_Mortise_Locks_corbin_russwin_357
