B5S Series Mill Aluminum 240" Square Base Shoe Drilled for 1/2" Glass

Roll over image to zoom in

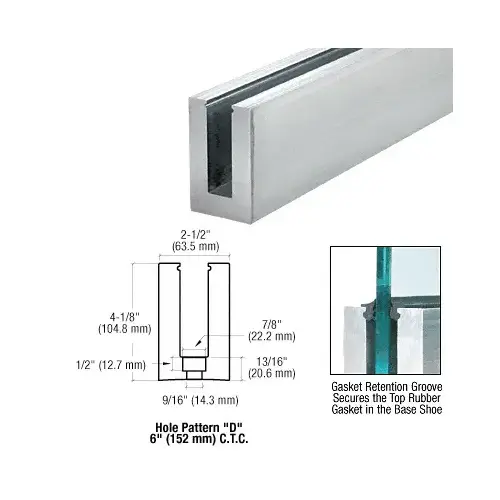

CRL B5S20D6 B5S Series Mill Aluminum 240" Square Base Shoe Drilled for 1/2" Glass

Item #: B5S20D6 by CR Laurence

See reviews See reviews
In Stock

$1,797.30

/each
SAVE UP TO 179.73

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • For 1/2" (12 mm) Monolithic Tempered Glass
  • Typically Used as the Base Channel for Glass Railing Systems or Windscreens
  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available

Center to Center

6" (152 mm)

Counter Bore and Depth

7/8 x 1/2 in (22.2 x 12.7 mm)

Counter Bore X Depth

7/8" (22 mm) x 1/2" (12.7 mm)

Stock Length

240" (6.10 m)

Hole Size

9/16" (14.3 mm)

Holes Drilled C.T.C.

6" (152 mm)

Height With Casters

81" (2.06 m)

Height

4-1/8

Finish

Mill

Material

Aluminum

Length

240

Width

2-1/2

Glazing Thickness

1/2

Glazing Type

Monolithic

Drilling Center to Center

6

Finish/Color

Mill


The CRL B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
GLASS SPECIFICATIONS:
1/2" (12 mm) Thick Glass when using TAPER-LOC® Dry Glaze System; 1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using Wet Glaze System.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.

.
