The CRL B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
GLASS SPECIFICATIONS:
1/2" (12 mm) Thick Glass when using TAPER-LOC Dry Glaze System; 1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using Wet Glaze System.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

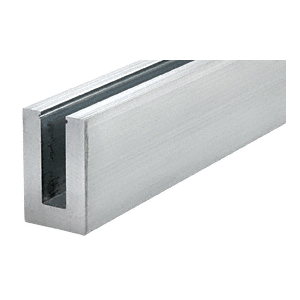

CRL B5S20D6 B5S Series Mill Aluminum 240" Square Base Shoe Drilled for 1/2" Glass
Item #: B5S20D6 by CR Laurence
See reviewsSee reviews
In Stock
$1,797.30
/eachSAVE UP TO 179.73
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 1/2" (12 mm) Monolithic Tempered Glass
- Typically Used as the Base Channel for Glass Railing Systems or Windscreens
- Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
- Custom Cutting and Mitering Service
- Test Reports Available
Center to Center
6" (152 mm)
Counter Bore and Depth
7/8 x 1/2 in (22.2 x 12.7 mm)
Counter Bore X Depth
7/8" (22 mm) x 1/2" (12.7 mm)
Stock Length
240" (6.10 m)
Hole Size
9/16" (14.3 mm)
Holes Drilled C.T.C.
6" (152 mm)
Height With Casters
81" (2.06 m)
Height
4-1/8
Finish
Mill
Material
Aluminum
Length
240
Width
2-1/2
Glazing Thickness
1/2
Glazing Type
Monolithic
Drilling Center to Center
6
Finish/Color
Mill
Product Overview
The CRL B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
GLASS SPECIFICATIONS:
1/2" (12 mm) Thick Glass when using TAPER-LOC Dry Glaze System; 1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using Wet Glaze System.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
