The CRL GRS B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners.
SPECIFICATIONS:
Material: 6063 Aluminum Alloy T52 Temper
Typical Use: Heavy-Duty Square Base Shoe used with 1/2" (12 mm) glass as the base channel for glass railing systems. Also available counterbored and drilled.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

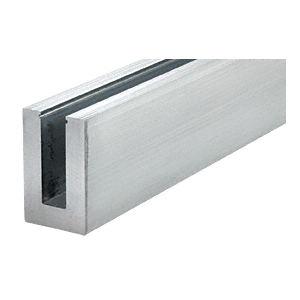

CRL B5S10D B5S Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass
Item #: B5S10D by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 1/2" (12 mm) Monolithic Tempered Glass
- Typically Used as the Base Channel for Glass Railing Systems or Windscreens
- Drilled and Counter Bored 12" (305 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
- Custom Cutting and Mitering Service
- Test Reports Available
- Use Monolithic Tempered Glass
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3269
Center to Center
12 in (305 mm)
Counter Bore and Depth
7/8 in x 1/2 in (22.2 x 12.7 mm)
Counter Bore X Depth
7/8" (22 mm) x 1/2" (12.7 mm)
Hole Size
9/16" (14.3 mm)
Stock Length
120" (3.05 m)
Holes Drilled C.T.C.
12" (305 mm)
Height
4-1/8
Finish
Mill
Material
Aluminum
Length
120
Width
2-1/2
Glazing Thickness
1/2
Profile
Drilled
Glazing Type
Monolithic
Drilling Center to Center
12
Finish/Color
Mill
Product Overview
The CRL GRS B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners.
SPECIFICATIONS:
Material: 6063 Aluminum Alloy T52 Temper
Typical Use: Heavy-Duty Square Base Shoe used with 1/2" (12 mm) glass as the base channel for glass railing systems. Also available counterbored and drilled.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
