CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

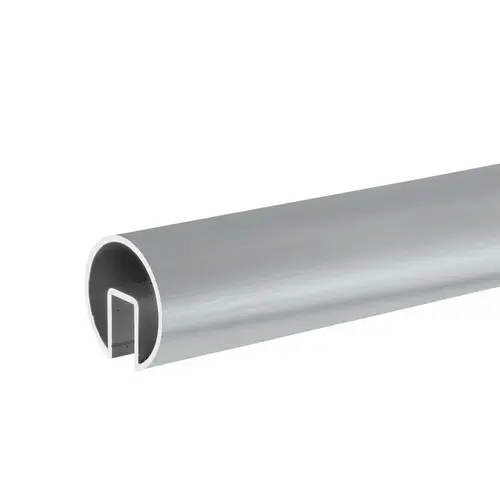

CRL GR25M Mill 2-1/2" Extruded Aluminum Cap Rail for 1/2" or 5/8" Glass - 240"
Item #: GR25M by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available for 1/2", 9/16" or 5/8" (12, 13.52, or 16 mm) and 3/4" (19 mm) Glass
- Connects to a Variety of Fabricated Corners and End Caps
- Custom Shapes and Sizes are Available
- Use Sleeve Number GR25CSM
Depth
1-3/16 in (30 mm)
"D" Depth
1-3/16" (30 mm)
"W" Width
3/4" (19 mm)
Type
2-1/2" Extruded Aluminum Cap Rail for 1/2" or 5/8" Glass - 240"
Grade
6063-T6
Thickness
.125" (3.2 mm)
Finish
Mill
Diameter
2-1/2"
Material
6063-T6 Aluminum
Finish/Color
Mill
Product Overview
CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
